AJA FiDO-2R 2-Channel Single Mode Optical Fiber to 3G-SDI Receiver

OUR PART #: FIDO-2R MFR #: FiDO-2R-R0

Copied to clipboard

The AJA FiDO-2R Dual Optical Fiber to SD/HD/3G-SDI receiver allows for the transport of SDI, HD-SDI... ...Read more

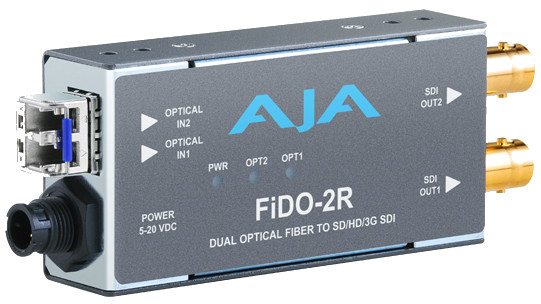

AJA FiDO-2R 2-Channel Single Mode Optical Fiber To 3G-SDI Receiver Image 1
AJA FiDO-2R 2-Channel Single Mode Optical Fiber To 3G-SDI Receiver Image 2
AJA FiDO-2R 2-Channel Single Mode Optical Fiber To 3G-SDI Receiver
Our Price: $815.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The AJA FiDO-2R Dual Optical Fiber to SD/HD/3G-SDI receiver allows for the transport of SDI, HD-SDI, and 3G SDI over distances up to 32,808 ft (10km) with electrical isolation - useful for eliminating ground loop problems. The FiDO-2R meets all relevant SMPTE specifications and is rugged, versatile, and suitable for indoor or outdoor use.

The FiDO-2R dual channel model allows the conversion of 2 channels - great for 3D, dual-link SDI, or 2 completely independent SDI channels (for example, SD, HD, and 3G can be mixed in any combination).

Features

  • Transport of Sd/HD/3G-SDI over single-mode optical fiber
  • Auto-detection of video format
  • All SDI Ancillary data including embedded audio is passed
  • LC fiber connectors
  • All inputs, either SDI or fiber, are equalized and re-clocked
  • ASI compatible
  • Useful for eliminating ground loop problems
  • 5-20VDC power supply (included)
  • 5 year warranty

Specifications

  • Video Formats: 150 Mbps - 3 Gbps, format agnostic
  • Video Input Digital:
    • 2-Channel independent Single Mode LC Fiber Outputs, SMPTE-297
    • Nominal Wavelength: 1260 - 1620 nm
    • Optical Sensitivity: -18 dBm (min)
    • Overload Power: -3 dBm (min)
  • Video Output Digital: 2-Channel independent 3G-SDI BNC Outputs, SMPTE-259/292/424
  • Reclocking:
    • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    • All other rates are passed through and not reclocked
  • Size (w x d x h): 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)
  • Weight: 0.5 lb (0.3 kg)
  • Power:
    • 3 watts max
    • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
  • Environment:
    • Safe Operating Temperature: 32 to 104 F (0 to 40 C)
    • Safe Storage Temperature (Power OFF): -40 to 140 F (-40 to 60 C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: < 10,000 feet (< 3,000 meters)
