Blonder-Tongue RMDA86A-30 RMDA 86A-30

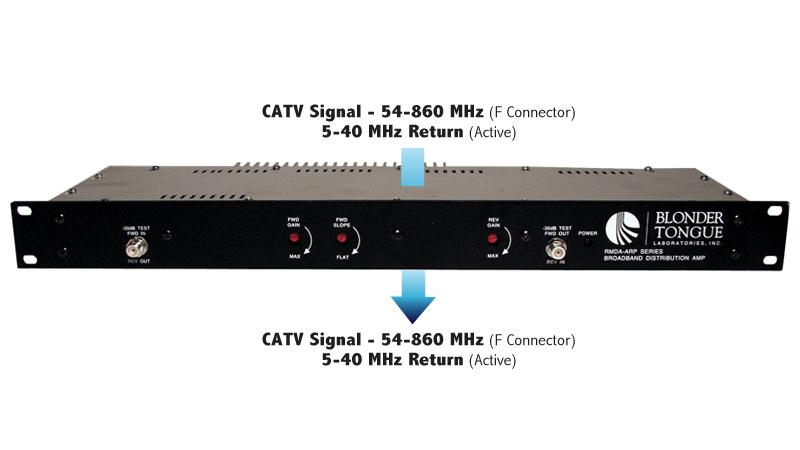

The RMDA-ARP (active return path) are rack mounted 2-way broadband distribution amplifiers. Utilizing push-pull hybrid amplifier technology, they are ideal for MATV, SMATV or CATV applications. The amplifiers have a forward bandwidth of 54 - 860 MHz with a gain of 30 dB. The reverse path of 5-40 MHz is field configurable for active or passive operation. The RMDA-ARP amplifier has built-in variable gain controls on both the forward and reverse paths. A forward path variable slope control is provided inter-stage as is the variable gain control. Additionally, a fixed forward equalizer and forward and reverse attenuator plug-ins can be installed for further signal conditioning at the input to the amplifier. 30 dB back-matched test ports at the input and output are provided for monitoring both forward and reverse signal levels without interrupting service. The amplifier is housed in a 1RU aluminum chassis that provides exceptional heat dissipation.

Features:

• 860 MHz Push Pull Hybrid Technology
• 5-40 MHz Return Path, Field Selectable Active/Passive Operation
• Built-in Variable Gain and Slope Controls

Specifications:

• Forward Path RF
  • Frequency Range (MHz): 54-860
  • Channel Loading: 129
  • Flatness (dB): ±1
  • Gain (dB): 32
  • Noise Figure (dB): 8.5
  • Output Level (dBmV): +34/+42
  • Test Port Level (dB): -30, ± 2
  • Gain Control Range (dB): 10
  • Slope Control Range (dB): 8
  • Composite Triple Beat - CTB (dB): -58
  • Composite Second Order - CSO (dB): -59
  • Cross Modulation - XMOD (dB): -58
  • Hum Modulation (dB): -70
  • Impedance - All Ports (O): 75
  • Return Loss (dB):
    • Input: 14
    • Output: 14
  • Operating Temperature (°C): -20 to +60
  • Power Supply:
    • 117 VAC, 60 Hz, 26 W
    • 26 VAC, 60 Hz, 1.0 A
  • Dimensions (W x H x D):
    • 19 x 1.75 x 5.13 in.
    • 483 x 44 x 130 mm
  • Weight: 6 lbs. 2.7 kg
  • Number Of Hybrids: 2 Fwd, 1 Rev
  • Hybrid Technology: Push-Pull
• Return Path RF
  • Frequency Range (MHz): 5-40
  • Channel Loading: 5
  • Flatness (dB): ±0.5
  • Gain (dB):
    • 22 (Active)
    • 1.5 dB (Passive)
  • Noise Figure (dB): 6
  • Output Level (dBmV): +48
  • Test Port Level (dB): -30, ± 2
  • Gain Control Range (dB): 18
  • Composite Triple Beat - CTB (dB): -66
  • Composite Second Order - CSO: -70
  • Cross Modulation - XMOD (dB): -60
  • Hum Modulation (dB): -65
  • Impedance - All Ports (O): 75
  • Return Loss (dB):
    • Input: 15
    • Output: 15
  • Operating Temperature (°C): -20 to +60
