Tripp Lite ISOBAR12/20-UL
Surge Suppressor,12 out, 15` Cord, 20A


Tripp Lite's IBAR12/20ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with NEMA 5-20P input plug and 20 amp capacity.
Learn More
Our Price: $142.80
List Price: $192.00
You save 26%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Tripp Lite ISOBAR12/20-UL
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

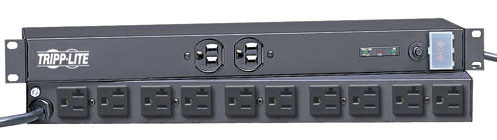

Tripp Lite's IBAR12/20ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with NEMA 5-20P input plug and 20 amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation, using only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15 amp / 10 rear mounted 20 amp), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status. Lifetime warranty with $25,000 ultimate lifetime Insurance (USA & Canada Only) coverage .


  • Frequency Compatibility: 50/60Hz
  • Output Watts: 2400
  • Output voltamp capacity: 20A
  • Outlet quantity/type: 12 (2 from NEMA 5-15R/10 rear NEMA 5-20R)


  • Reccomended Electrical Service: 120V (110-125V)
  • Input Cnnection Type: NEMA 5-20P input plug
  • Input Cord Length: 15'


  • Switches: Red illuminated power switch controls power to all outlets
  • Diagnostic LED's: Protection present (green), line fault (red) and line ok (green)
  • Locking Switch Cover: Transparent locking switch cover prevents accidental shutoff

Surge / Noise Suppression

  • AC Suppression Joule Rating: 3840
  • AC Suppression Response Time: NM = 0ns. CM = < 1ns
  • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
  • Clamping Voltage (RMS): 140V
  • AC Suppression Surge Current Rating: 96,000 amps
  • AC Suppression Components Used: Metal oxide varistors, toroidal balanced chokes and VHF capacitors
  • Safe Thermal Fusing: Prevents unsafe conditions during extreme extended overvoltages and catastrophic occurences
  • UL1499 let through rating: 330V - UL Verified
  • EMI / RFI filtering: 40-80dB
  • Immunity: Conforms to IEE 587 / ANSI C62.41


  • Unit Weight: 6.3lbs
  • Unit Dimensions: 1.75 x 17.5 x 4
  • Material of Construction: Metal
  • Mounting Accessories Included: Included mounting flanges are pre-installed for 1U rackmount installation and can be re-configured to support a variety of mounting options
  • Housing Color: Black
  • Receptacle Color: Black
  • AC Line Cord Color: Black
  • Form Factors Supported: 1U rackmount, 0U vertical rackmount, wallmount and under-counter mounting supported - detachable flanges can be re-configured to support a variety of additional mounting options
  • Right Angle Plug: Yes


  • UL1449 3rd Edition (AC Suppression)
  • UL1283 (EMI Filter)
  • cUL
  • Exceeds IEEE 587 category A&B specifications
