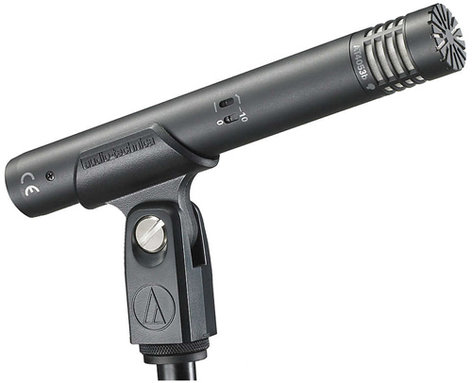

Audio-Technica AT4053b Small-Diaphragm Hypercardioid Condenser Microphone

OUR PART #: AT4053B MFR #: AT4053B

Copied to clipboard

A versatile studio performer that can be used with confidence in a wide range of professional miking applications... ...Read more

Audio-Technica AT4053b Small-Diaphragm Hypercardioid Condenser Microphone Image 1
Audio-Technica AT4053b Small-Diaphragm Hypercardioid Condenser Microphone Image 2
Audio-Technica AT4053b Small-Diaphragm Hypercardioid Condenser Microphone
Our Price: $699.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$20/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

A versatile studio performer that can be used with confidence in a wide range of professional miking applications, the AT4053b features direct-coupled balanced outputs that deliver clean signals in high-output conditions. This ensures that it's totally free of the distortion associated with conventional transformer-coupled outputs. It also provides a fast transient response that contributes to the open, transparent audio reproduction of even the most difficult-to-capture instruments. This microphone is fully RoHS-compliant - free from all substances specified within the EU directive on the reduction of hazardous substances (RoHS).

It's made up of 2 modular subassemblies: the AT4900b-48 body and the AT4053b-EL hypercardioid head capsule (both available separately). Further, additional interchangeable capsules are also available: omnidirectional — AT4049b-EL, and cardioid — AT4051b-EL (both sold separately as well).

Applications

Professional recording • Broadcast • Professional sound reinforcement

Includes

  • AT4053b microphone
  • AT8405a stand clamp for ⅝"-27 threaded stands
  • Windscreen
  • Protective carrying case

Features

  • Specially-engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement
  • Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Direct-coupled, balanced output results in a clean signal even under high-output conditions
  • Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
  • Switchable 80Hz hi-pass filter and 10dB pad
  • Rugged turned-brass microphone housing for enduring dependability
  • State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
  • RoHS compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)

Specifications

  • Element: Externally-polarized (DC bias) capacitor
  • Polar Pattern: Hypercardioid
  • Frequency Response: 20 - 20,000Hz
  • Low Frequency Roll-Off: 80Hz, 12dB/octave
  • Open Circuit Sensitivity: -34dB (19.9mV) re 1V @ 1Pa
  • Impedance: 50Ω
  • Maximum Input Sound Level:
    • 145dB SPL, 1kHz @ 1% T.H.D.
    • 155dB SPL, with 10dB pad (nominal)
  • Noise: 16dB SPL
  • Dynamic Range (Typical): 129dB, 1kHz @ Max SPL
  • Signal-to-Noise Ratio: 78dB, 1kHz @ 1Pa
  • Phantom Power Requirements: 48VDC, 4.8mA typical
  • Switch: Flat, roll-off; 10dB pad (nominal)
  • Weight: 4.5oz. (127g)
  • Dimensions (L x max. body diameter): 6.10" x 0.83" (155 x 21mm)
  • Output Connector: Integral 3-pin XLRM-type
  • Optional Interchangeable Elements (sold separately):
    • AT4049b-EL (omnidirectional)
    • AT4051b-EL (cardioid)
  • Note: further information can be found within the items located under the "Documentation" tab above.
