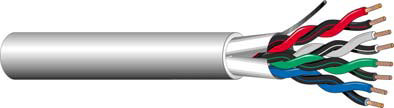

West Penn 3751-1000
Cable, 2 pair, 18 gauge, (7x26), Shielded, CMR Rated,

OUR PART #:  3751-1000

This 18 gauge, 4 conductor shielded cable is perfect for indoor applications like intercom, security, sound, audio, background music and power limited control circuits.
Learn More
Selected Model Price: $302.18
List Price: $355.63
Save up to 15%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

West Penn 3751-1000
Select model: (shipping times are approximate)
Qty:

Similar Products

This 18 gauge, 4 conductor shielded cable is perfect for indoor applications like intercom, security, sound, audio, background music and power limited control circuits. Gray jacket color, 1,000 ft spool.

Specifications

  • Conductor: 18 AWG bare copper wire
  • Stranding : 7x26
  • Insulation Material: PVC
  • Insulation Thickness: 0.010" Nom.
  • Number of Conductors: 4 (2 pair)
  • Shield: Overall 100% Aluminum Foil
  • Drain: Stranded Tinned Copper
  • Jacket Material: PVC
  • Jacket Thickness: 0.015" Nom.
  • Overall Cable Diameter: 0.252" Nom.
  • Approximate Cable Weight: 37.9Lbs/1M' Nom.
  • Flame Rating: UL1666 Riser Flame Test
  • Temperature Rating: -4°F to 140°F
  • Operating Voltage: 300V RMS
  • Max Capacitance Between Conductors: @ 1kHz: 68pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1kHz: 122pf/ft Nom.
  • DC Resistance per Conductor @ 68°F: 10.5 Ohms/1M' Nom.
  • Insulation Colors: Black/Red-Red, Black/White-White
  • Jacket Color: Gray
  • RoHS Compliant: Yes
