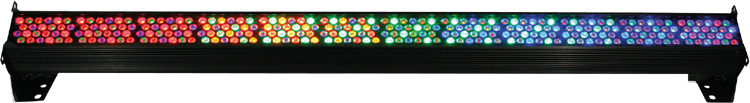

72" RGBA LED Batten Range in Black


The Chroma-Q™ Color Force™ LED batten range is a brute of a light. The super bright fixture easily washes up to 8m / 26 foot.
Learn More
Our Price: $4,408.95
List Price: $4,845.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Chroma-Q™ Color Force™ LED batten range is a brute of a light. The super bright fixture easily washes up to 8m / 26 foot. In addition, our advanced ColorSure™ RGBA colour and control management technologies together give you a radically increased colour palette, enhanced colour consistency, a high CRI of 92 and theatrical grade dimming, all in the same fixture. The range also includes a multi-purpose version.

Chroma-Q CHCF72NFRGBA Specifications:

  • Dimensions: 69.25" x 7.25" x 7" (1,759 x 182 x 177mm)
  • Weight:  48lb (22kg)
  • Shipping Dimensions: 73" x 12" x 12.5" (1,855 x 305 x 320mm)
  • Shipping Weight: 56lb (25kg)
  • Power Supply: Built-in
  • Power Input Rating:  100-240V AC, 50-60 Hz, 700VA
  • Power Factor: 0.995
  • Power Consumption: 660W
  • Typical Power & Current:  Measurements done with all LEDs at max.intensity. Measurements made at nominal voltage. Allow for a deviation of +/-10%.
  • Power Connectors In/Out: PowerCon
  • Data Connectors In/Out: XLR 5-pin
  • Max Cable Run: NA
  • Control Protocol:  ANSI E1.11 USITT DMX 512-A
  • Cooling: Forced - 2x fans
  • Operating Temperature: 0°C to 40°C
  • Construction: Anodised aluminium extrusion
  • Colour: Black
  • Built-in hardware: Quick release lever for tilt adjustment
  • IP rating: IP20
  • Approvals: CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024:1998, ICES-003 :2004 & FCC Part 15 Subpart B: 2007, CSA C22. No.166-M1983:R2008 UL 1573:2003; UL 8750

Control & Photometric Data

  • LED Engines: 12
  • LEDs per cell: 24 (6 x RGBA)
  • Total LEDs: 288
  • Control Modes:
    • 43 channels Fx HSI
    • 36 channels HSI
    • 36 channels RGB (*Magic Amber)
    • 48 channels RGBA
    • 49 channels sRGBI (*MagicAmber)
    • 9 channels Fx HSI
    • 3 channelsHSI
    • 3 channels RGB
    • 4 channelsRGBA
    • 5 channels sRGBI (*Magic Amber)
    • 1 channel DMX Look Select
  • Dimming Curve: Theatrical
  • Variable effects engine: Yes
  • Effects Parameters: Grouping, color speed, color fan, color range, color step, intensity effects and intensity fan
  • Hot lumen output: 12,000 hot lumen (preliminary)
  • Optics: Specialised close focus lens
  • Beam angle: 23° (approx.)
  • Beam angle with optional Cyc optic: 80° x 30° (approx.)
  • Beam angle with optional Border optic: 60° (approx.)
  • Beam distribution: Asymmetrical direct illumination
  • CCT  Adjustable: Adjustable 1,000-10,000K
  • CRI: 92
  • Lamp life: L70 up to 50,000 hours
