Kramer PT-571 HDMI Over Twisted Pair Transmitter

OUR PART #: PT-571 MFR #: 90-70832090

Copied to clipboard

Kramer's PT-571 is a twisted pair transmitter for HDMI signals. ...Read more

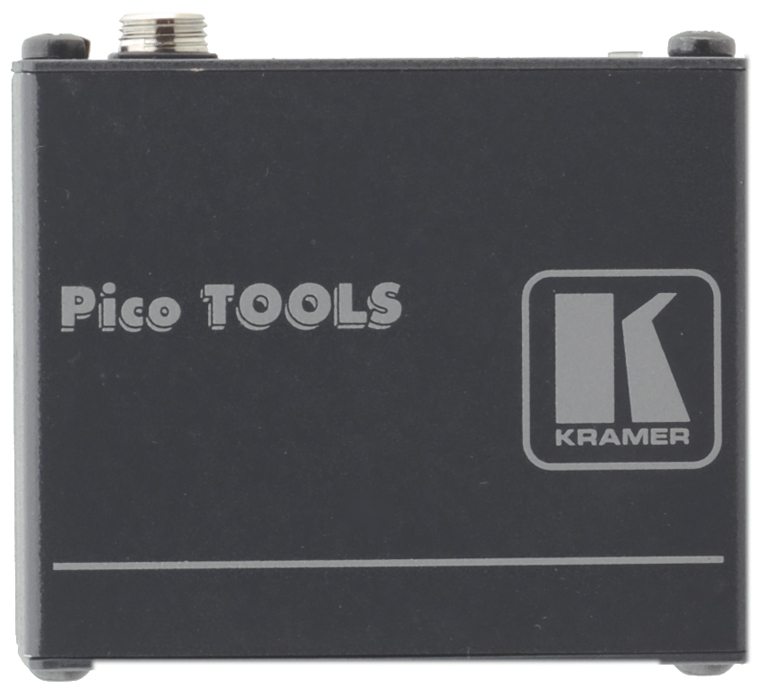

Kramer PT-571 HDMI Over Twisted Pair Transmitter Image 1
Kramer PT-571 HDMI Over Twisted Pair Transmitter Image 2
Kramer PT-571 HDMI Over Twisted Pair Transmitter Image 3
Kramer PT-571 HDMI Over Twisted Pair Transmitter Image 4
Kramer PT-571 HDMI Over Twisted Pair Transmitter
Our Price: $236.00
List Price: $295.00
You save 20%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Kramer's PT-571 is a twisted pair transmitter for HDMI signals. The PT-571 converts an HDMI signal to a single twisted pair signal and the PT-572+ (sold separately) converts the twisted pair signal back to an HDMI signal.

Specifications

  • Max. data rate - 1.65Gbps
  • HDTV compatible
  • HDCP compliant
  • HDMI Support - HDMI (V.1.4 with Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD).
  • 3D pass-through
  • System Range - Up to 90m (295 ft.) at 1080i, or up to 30m (98 ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295 ft.) at 1080i, or up to 70m (230 ft.)at 1080p on shielded BC-DGKat623 cable. Up to 100m (330 ft.) at 1080i or up to 90m (295 ft.) at 1080p on shielded BC-DGKat723 cable
  • Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables.Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground
  • EDID PassThru - Passes EDID/HDCP signals from source to display
  • Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached
  • Power Connect™ System - A single connection to the transmitter powers the receiver
  • Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1RU rack space with the optional RK-4PT rack adapter
