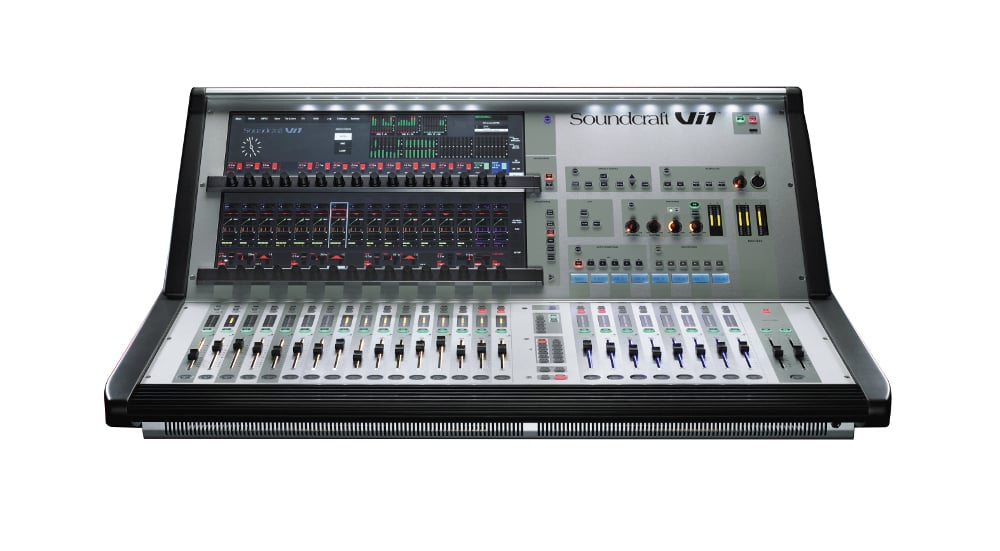

Soundcraft Vi1 Control Surface
Vi1 46-Channel Digital Mixer

OUR PART #  VI1-CONTROL-SURFACE

Call for price!


Recommended Accessories

The Soundcraft Vi1 is a complete standalone console with 32 channels of analog input to 27 analog outputs, plus 6 digital inputs, 4 Stereo FX Returns and 6 digital outputs in one chassis. As standard, Input to mix capacity is 46 channels, but by adding a stagebox (compatible with the existing Vi racks), simultaneous channel count increases to 64. Channels are routable to 24 multifunction busses, plus LR and Mono Mix busses. Up to 8 of the busses can be configured as Matrix mixes, each with up to 16 sources.

The surface is just over a metre wide, and includes 16 motorized channel faders with fixed and user-definable layers, 8 output/VCA faders and 2 master faders.

What's really cool about the Vi1 though, is the new Widescreen Vistonics interface, which will be instantly familiar to anyone who's driven a Vi6 or Vi4, as well as retaining the same 'walk-up' user-friendliness of the other Vi consoles. This new development displays all parameters for 16 channels side by side, on a single 22" Vistonics touch screen. The upper half of the screen handles the Output section control as well as Cue List or Menu displays. Parameter control is via two rows of 16 rotary encoders. Exactly the same channel functionality as the Vi6 and Vi4 is available here, along with all the same core snapshot, talkback and monitoring facilities.

Naturally, the Vi1 inherits many of the facilities of its larger siblings, including Soundcraft FaderGlow™, 4 stereo Lexicon effects engines, BSS Audio graphic EQs on all output busses, and integral dynamics on all channels. The desk is also compatible with Vi2, 4 and 6 show files.

Soundcraft Vi1 Control Surface Specifications:

  • Frequency Response:
    • Local Mic input to Line output: +0/-1dB, 20 Hz - 20 kHz
    • AES/EBU In toAES/EBU Out: +0/-0.2dB, 20 Hz - 20 kHz
  • T.H.D. & Noise, 22 Hz - 22 kHz:
    • Local Mic In (min gain) to Local Line Out: < 0.003% @ 1 kHz
    • Local Mic In (max gain) to Local Line Out:< 0.020% @ 1 kHz
  • Mic Input E.I.N.:  < -126 dBu (150 Ohm source)
    • 22 Hz - 22 kHz bandwidth, unweighted
  • Residual Noise:  -95 dBu
    • Local line output; no inputs routed, Mix fader @0dB
  • CMRR: 80dB @ 1kHz, Local Mic input
  • Sampling Frequency:  48 kHz
  • Latency, Local Mic Input to Local Line output:  < 2ms @ 48 kHz
  • AES/EBU Input Sample Rate:  32 – 108 kHz (with SRC enabled)
  • DSP Resolution:  40-bit floating point
  • Internal Clock:
    • Accuracy:  < +/- 50ppm
    • Jitter:  < +/- 5ns
  • External Sync:  BNC Wordclock, AES/EBU sync in, Video sync in
  • Input & Output Levels:
    • Mic Inputs:  +28 dBu max
    • Line Inputs:  +22 dBu max
    • Line Outputs:  +22 dBu max
    • Nominal Operating Level:  0 dBu (-18dBFS)
  • Input & Output Impedances:
    • Mic Inputs:  2.7 kOhms
    • All other analog Inputs:  >10 kOhms
    • Line Ouptuts:  < 75 Ohms
    • AES/EBU Outputs:  110 Ohms
  • Oscillator:  20Hz to 20kHz/Pink/White Noise,variable level
  • Channel HP Filter:  20 Hz - 600 Hz, 18dB per octave
  • Channel LP Filter:  1 kHz - 20 kHz, 18dB per octave
  • EQ (Inputs and Bus Outputs):
    • HF:  20 Hz - 20 kHz, +/-18dB, Q= 0.3-8.7 or shelving
    • Hi-Mid:  20 Hz - 20 kHz, +/-18dB, Q=0.3-8.7
    • Lo-Mid:  20 Hz - 20 kHz, +/-18dB, Q=0.3-8.7
    • LF:  20 Hz - 20 kHz, +/-18dB, Q= 0.3-8.7 or shelving
  • Metering:  Internal 11-segment LED bar graphs plus 4-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
  • Mains Voltage Operating Range:  90 - 264V, 47 - 63Hz, autoranging
  • Mains Power Consumption, Control Surface:  100W
  • Internal Mass Storage:  4GB Compact Flash Card
