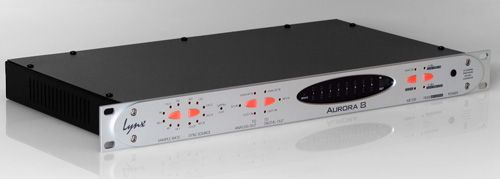

Lynx Studio Technology AURORA-8HD
Converter 8Ch w/LT-HD Card

OUR PART #:  AURORA-8HD

Since their introduction in 2005, the Lynx Aurora converters have provided high quality AD and DA conversion for professional audio studios around the world.
Learn More
Our Price: $1,995.00
List Price: $2,195.00
You save 9%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lynx Studio Technology AURORA-8HD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Since their introduction in 2005, the Lynx Aurora converters have provided high quality AD and DA conversion for professional audio studios around the world. With the LT-HD LSlot card, Aurora converters are seamlessly incorporated into Pro Tools|HD® studios via HD Core or Accel Core cards using standard DigiLink cabling. All Aurora I/O functions for parameter control are controlled and monitored within Pro Tools.

Aurora 16HD is a 16 channel 24 bit /192 kHz analog-to-digital/digital-to-analog converter in a single-space rack-mountable case. The Aurora 16-VTHD adds variable trim pots to all analog input and output channels, for fine adjustment of maximum output levels between +8.5 dBu to +24 dBu. The analog inputs and outputs are electronically balanced. The AES digital I/O is transformer coupled and is capable of driving 500 feet of cable at 192 kHz. Both dual and single wire AES channel modes are supported at sample rates up to 192 kHz.

The LT-HD card has one Primary and one Expansion DigiLink port, which allows daisy-chaining of multiple Aurora converters and other DigiLink devices. Aurora HD models offer audio signal latency identical to that of the Digidesign 192 I/O™ for accurate delay compensation within ProTools - no manual delay adjustments are required.

Aurora 8HD is a 8 channel 24 bit /192 kHz analog-to-digital/digital-to-analog converter in a single-space rack-mountable case. All front panel functions and other low-level options can be controlled from the Lynx AES16/AES16e digital interface cards on Windows and Macintosh platforms. This allows the Aurora HD converters to multi-task, for use with native applications such as Logic, Nuendo, Cubase, Sequoia, Samplitude and many others.

Lynx’s proprietary SynchroLock™ sample clock technology is also included, an exclusive feature that provides 3000:1 jitter attenuation for external clock signals. The SynchroLock clock generator’s output is an extremely low jitter clock source that drives the converters inside of Aurora and is available as an output for studio synchronization of other digital devices.

All analog and digital connections use DB25 connectors with industry standard pinouts which are compatible with off-the-shelf cables from manufacturers such as Lynx, Mogami, ProCo, Hosa and others.

Aurora converters are preconfigured for three voltages. Aurora 115 volt models are available in the US, Canada, Mexico and Brazil. The 100 volt models are available in Japan only. 230 volt units are available throughout the rest of the world through authorized distributors and retailers.

  • Aurora converters with preinstalled LT-HD, allowing recognition and control by Pro Tools|HD®
  • Aurora 8HD: Simultaneous 8 channel analog I/O and 8 channel AES/EBU I/O
  • 24 Bit / 192 kHz mastering quality A/D and D/A conversion
  • 192 kHz AES/EBU I/O supporting single and dual wire modes
  • Single rack space configuration, no fan
  • Word clock I/O with Lynx SynchroLock™ sample clock technology
25-Pin D-Sub to 4xXLR-F/4xXLR-M, AES/EBU Cable (16.4 ft.)
Lynx Studio Technology CBL-DIGY85 25-Pin D-Sub to 4xXLR-F/4xXLR-M, AES/EBU Cable (16.4 ft.)
Digital input/output cable.  Eight channels AES/EBU I/O.  Male 25 pin D-sub connector (yellow) with four female XLR connectors for input and four male XLR connectors for output.  16.4 ft. (5 m) long.  Yamaha pinout ...
82.44 90.00 8

Usually ships in 7-14 business days.
Need it sooner? Call us!
25-Pin D-Sub to 8xXLR-F Cable (16.4 ft.)
Lynx Studio Technology CBL-AIN85 25-Pin D-Sub to 8xXLR-F Cable (16.4 ft.)
Analog input cable.  Male 25-pin D-sub connector (white shield) to eight female XLR connectors.  16.4 ft. (5 m) long.  TASCAM wiring standard.
77.28 80.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
25-Pin D-Sub to 8xXLR-M Cable (16.4 ft.)
Lynx Studio Technology CBL-AOUT85 25-Pin D-Sub to 8xXLR-M Cable (16.4 ft.)
Analog input cable. Male 25 pin D-sub connector (black shield) to eight male XLR connectors.  16.4 ft. (5 m) long.  TASCAM wiring standard.
77.28 80.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
26 Pin Male To 25 Pin Male DSub, 4Ch In/Out
48.30 50.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
