Leader Instruments LV5800 HD/SD-SDI Multi Monitor Platform

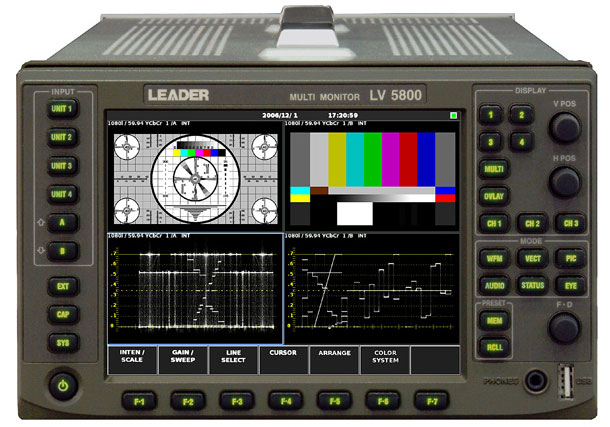

The LV5800 is a Multi-SDI Monitor for HD/SD-SDI signals with an XGA (1024x768) TFT color LCD in an adjustable tilt front panel. It provides all of the functions you need for professional HD/SD-SDI test and monitoring while adding features never before available in a waveform monitor.

Inputs supported and auto-detected by the LV5800 include twenty-three standard SDI formats. There are additional accommodations for 10 bit and 12 bit systems, which includes future handling of Y,Cb,Cr 4:2:2 and GRB 4:4:4 standards (Dual Link). The LV5800 can display the input signals in Waveform, Vector, 5-Bar, Picture, Audio, Data, and Status modes in various combinations. The multi-screen setup allows you to select the input and format you want displayed in each quadrant, giving you real control of the display.

The LV5800 comes with four slots for input options and two slots for output options. This provides you more flexibility in the configuration of your unit. In addition, the modules are field installable and replaceable, so you can add additional functions as your needs grow. The upgrade modules include: SDI Input (Option 01), Eye Pattern (Option 02), DVI-I Output (Option 20), and AES/EBU Input/Output (Option 40).

Features:

• Monitor and Display Up To Four Sources Simultaneously (When Properly Equipped)
• Total Flexibility with Multi-Screen Setup
• Autonomous Monitoring and Detection/Alarm for Audio Silence and Video Freeze/Video Black
• Detects and Reports Errors In Time Code Continuity
• Capture, Store, and Review Screen Shots and Full Resolution HD Frames
• Innovative System Timing Display
• Dolby E Capable (With Optional Audio Module)
• Larger Number Of Module Slots For Improved Customization
• USB Connector On The Front Of The Unit Allows For Easy Storage Of Screen Captures, Presets, And Firmware Updates
• Low Noise Cooling System
• Ethernet Connectivity Allows For Remote Control Over The Web
• Headphone Socket For Sound Monitoring (When Audio Module Is Installed)
