FMR ARC-PEDAL Guitar/Instrument Processor Pedal

OUR PART #: ARC-PEDAL MFR #: A.R.C.

Copied to clipboard

The FMR ARC-PEDAL A.R.C. ...Read more

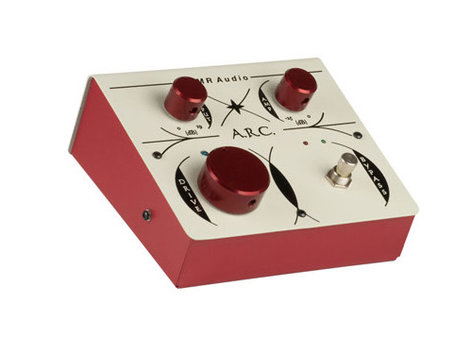

FMR ARC-PEDAL Guitar/Instrument Processor Pedal Image 1
FMR ARC-PEDAL Guitar/Instrument Processor Pedal Image 2
FMR ARC-PEDAL Guitar/Instrument Processor Pedal Image 3
FMR ARC-PEDAL Guitar/Instrument Processor Pedal
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The FMR ARC-PEDAL A.R.C. Instrument Processor, although named for its ability to enhance the sound of many different instruments—it improves your instrument’s Articulation, Resonance and Clarity (A.R.C.)—has a unique combination of features that you will find equally useful in the studio or on the stage.

What It Is - The A.R.C.—an acronym for "Articulation, Resonance & Clarity"—provides a unique, niche function by allowing the musician to change the balance of these three characteristics of their instrument(s). Originally designed to help the flagging guitar chops of its designer—by smoothing out the fretting/picking on a beautiful (& undeserved) 1986 PRS Custom—the A.R.C. has found a cult following among acoustic instrument players wanting to experience the "acoustic sound" while playing live with a wide variety of instruments: mandolins, ukeleles, acoustic guitars, fiddles/violins, acoustic basses, lap steel, dobros and the like. One player described the A.R.C. as being able to control, to taste, the resonance of his custom Collings dreadnaught during live gigs, while others have reported finally being able to hear their instrument's true nature through the stage monitors!

How It Sounds - Although the A.R.C. can be used to unnaturally exaggerate certain aspects of an instrument's sound, most generally the sound is operated in a range that sounds natural. Imagine the challenge of playing mic'ing/performing on an instrument whose sustain levels are very low compared to it's percussive characteristics (e.g., a mandolin or banjo) and trying to hear playing nuances without compressing the signal into a lifeless blob! Such is the challenge for many musicians who've found the natural sound of their instruments restored, particularly in a live situation!

How It's Done - At it's core, the A.R.C. is a dynamic processor (a compressor) configured to achieve dynamic/equalization effects. The compressor's side chain is affected by equalization circuits and is blended with the original instrument signal in varying amounts to achieve the desired effect as a function of its front panel controls.

FMR ARC-PEDAL Features:

  • 4 functions in 1: A boost pedal that buffers and amplifies instrument signals to a higher level , a dynamic processor that enhances your instrument’s tone and dynamics , DI/line driver to interface your instrument to live or recording studio equipment, and a studio-level effect that may be used to process audio tracks from your favorite DAW or recorder.
  • Flexible effect with minimum controls.
  • "True" bypass.
  • Sturdy steel chassis, epoxy paint &custom-machined anodized, solid aluminum knobs.
  • Bypass failsafe in case of power interruption.
  • XLR balanced output for console feed.
  • Uses a wide-range of power sources. May be powered from AC or DC.
  • "Natural", but enhanced, instrument sound.

FMR ARC-PEDAL Specifications:

  • Connectors:
    • Power: 2 x 2.1mm Coax jack
    • Audio: 2 x 1/4 in. (1 input, 1 output) jack, 1 XLRM, balanced/differential
  • Controls:
    • Rotary: Drive, Input & Amp levels
    • Switches: Bypass, chassis mounted
    • Meter: Blue LED showing process amount
  • Input/Output Z:
    • Input: 1M Ohm
    • Output: 1/4 in. 50 Ohm, XLR 100 Ohm
  • Clip Point: +20dBu, 1kHz, 3%THD (0dB input gain, 0dB on amp control, Referred to Input)
  • Noise: Better than -90dBu
  • Frequency response: 20-20kHz, ±1dB without compression
  • Output trim range: 0 to -25dB
  • Power Requirements: 9 to 12 V, AC or DC, @200mA minimum current
  • Dimensions:
    • Top panel (LxW): 6.2" x 5"
    • Side profile: 1.6" front, 2.5" rear (ref: bottom of feet)
    • Max height: 2.9"
  • Weight 0.9 lbs.
