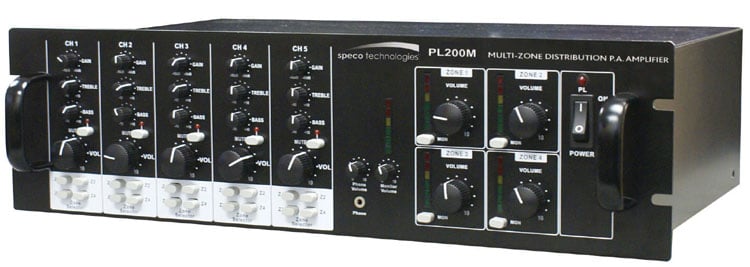

Speco Technologies PL200M 4-Zone 160W Commercial Amplifier with 25/70V and Low Impedance Outputs

OUR PART #: PL200M MFR #: PL200M

Copied to clipboard

The Speco Technologies PL200M features matrix technology, allowing you to route up to 5 separate inputs to 4 distinct zones. ...Read more

Speco Technologies PL200M 4-Zone 160W Commercial Amplifier With 25/70V And Low Impedance Outputs Image 1
Speco Technologies PL200M 4-Zone 160W Commercial Amplifier With 25/70V And Low Impedance Outputs Image 2
Speco Technologies PL200M 4-Zone 160W Commercial Amplifier With 25/70V And Low Impedance Outputs
Our Price: $1,753.30
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Speco Technologies PL200M features matrix technology, allowing you to route up to 5 separate inputs to 4 distinct zones. Now you can have the potential of playing a different source in each zone simultaneously. Assigning a source to a zone is as easy as pressing a button and each source has its own separate gain, treble, bass and volume controls. Three of the inputs feature a unique universal plug that allows the flexibility of connecting either an XLR or a 1/4" plug into the same unit.

PL200M Features:

  • Simultaneous playback of up to 5 sources into 4 zones
  • Telephone paging function and monitor output for music-on-hold feature
  • Microphone 1 priority with VOX mute function
  • Intelligent cooling fan
  • RoHS compliant
  • Separate controls (gain, bass, treble, volume) and LED indicator for each zone.
  • 19" Rack mount design with built-in handles (3U)

PL200M Specifications:

  • 3 XLR-1/4" combination inputs with phantom, mic or line level selection switch
  • 2 RCA Inputs
  • 4 Sets of 4 Ohms / 8 Ohms / 25/70V outputs
  • 40W RMS power output per zone for 160W RMS total
  • Frequency Response: 60 Hz - 17 kHz (±3dB)
  • Dimensions (WxHxD): 19" x 5.2" x 12.2"
  • Weight: 33.3 lbs

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download
