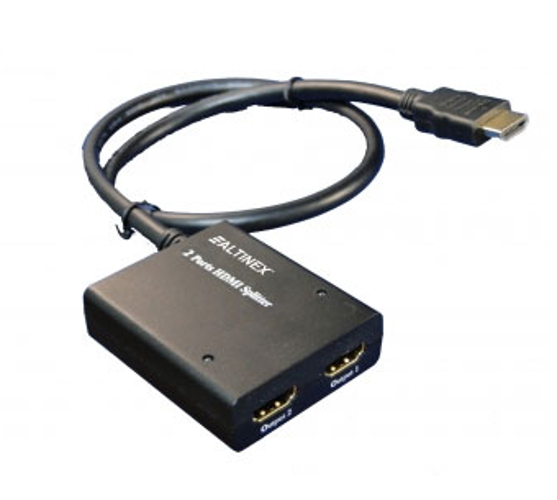

Altinex DA103-302
DittoAmp, 1x2 Splitter and Distribution Amp with Input Cable

OUR PART #:  DA103-302

Our Price: $164.87
List Price: $184.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Altinex DA103-302
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Altinex DA103-302 HDMI DittoAmp™ 1 x 2 distribution amplifier with built-in input cable (also known as a "splitter") distributes a single HDMI signal into two identical outputs simultaneously.  The built-in input cable helps to reduce cost by not requiring a third cable, but also makes the installation quicker and easier.  This is a HDMI V1.3b device with embedded High-bandwidth Digital Content Protection (HDCP) V1.0 and V1.1.

This product enables one HDMI device to present simultaneous feeds to two separate HDMI displays with computer resolutions up to 1920 X 1080 and HDTV formats 480p to 1080p at distances up to 60 feet on each output.  The DA103-302 handles DHCP keys automatically to provide proper content protection.

Supporting standards such as HDMI V1.3b Deep Color and Digital Audio formats LPCM, Dolby AC3, DTS 7.1, and DSD, this compact distribution amplifier is extremely powerful.

Altinex DA103-302 Features:

  • HDMI V1.3b with HDCP V1.0/1.1 Compliant
  • Computer to 1920 X 1080 and HDTV 480p - 1080p
  • Supports HDMI V1.3 Deep Color Video and Digital Audio
  • Self-Powered

Altinex DA103-302 Specifications:


  • Input Connector HDMI M (1)
  • Input Cable Length 20" (508 mm)


  • Output Connectors HDMI F (2)


  • Computer Resolutions 1920x1080
  • HDTV Resolutions 480p, 576p, 720p, 1080i, 1080p
  • Digital Audio LPCM, Dolby AC-3, DTS 7.1, DSD
  • Content HDCP V1.0 & V1.1
  • Output Cable Length, Max. 60 ft (18 m)
  • Agency Approvals: 1x2 DA FCC, CE, UL

Accessories Included

  • Power Adapter +5VDC, 2A PS5508US


  • Color Black
  • Height 0.7" (18 mm)
  • Width 2.5" (63 mm)
  • Depth 2.1" (54 mm)
  • Weight, DA 0.18 lb (0.08 kg)
  • Weight, Adapter 0.24 lb (0.11 kg)
  • Shipping Weight (approximate) 0.5 lb (0.2 kg)
  • T° Operating 10°C-50°C
  • T° Maximum 75°C
  • Humidity 10-85% non-condensing
  • MTBF (calc.) 38,000 hrs


Signal Input/Output

  • Input DDC Signal 5 Vp-p Max. (TTL)
  • Maximum Single Link Range 1920X1080p
  • Output Video HDMI 1.3b+ HDCP1.0/1.1

Operating Frequency

  • Vertical Frequency Range 50/60Hz
  • Video Amplifier Bandwidth 225MHz
  • Data Rate 6.75Gbps (2.25Gbps x3)


  • Interlaced (50&60Hz) 480i,576i,1080i
  • Progressive (50&60Hz) 480p,576p,720p,1080p

Power Consumption

  • +5VDC 0.5 A max.
  • Total Power 2.5 W max.
