Xantech DL85K
LCD Proof DinkyLink IR Receiver Kit in Black

OUR PART #  DL85K

Call for price! Not available online.


The DL85K features a small IR reciever that has been designed for mounting in very small spaces. They may be mounted under shelf edges, cabinet ledges, in wall speakers etc. - anywhere an inconspicuous appearance is desired. The high sensitivity of the receiver allows it to be placed behind speaker grills and still recieve IR commands up to 80ft away.

Features:

  • Works with all types of cable boxes, satellite boxesand TV's
  • Surface mount design
  • Low-profile - easy to hide
  • Proprietary ambient noise-suppression technology forreliabel operation in any lighting environment including compact fluorescents.
  • Wire channel for clean installation
  • Talk-back LED for system testing
  • IR modulation frequency bandwidth: 25-60KHz
  • Standard reception range: Up to 80ft
  • Reception angle: +/- 60 degrees

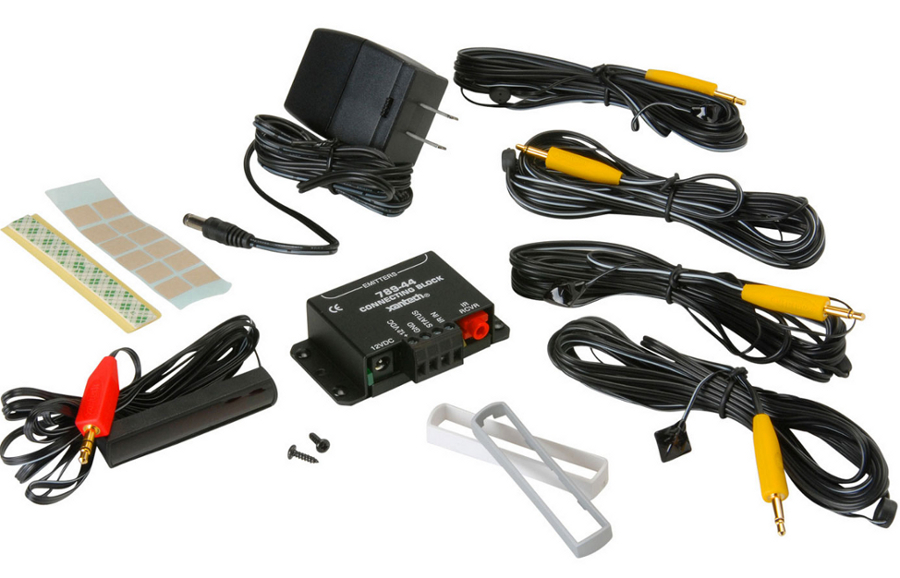

Includes:

  • (1) DL85 DinkyLink
  • (1) 789-44 Connecting Block
  • (1) 781ERGPS Power Supply
  • (4) 283D Blink-IR Mouse Emitters
  • (1) Each White, Silver and Black Trim pieces to match AV components

Specifications:

  • Dimensions of receiver: 2.55" x 0.55" x 0.35"



Xantech DL85K
LCD Proof DinkyLink IR Receiver Kit in Black

OUR PART #  DL85K

Product Information:

The DL85K features a small IR reciever that has been designed for mounting in very small spaces. They may be mounted under shelf edges, cabinet ledges, in wall speakers etc. - anywhere an inconspicuous appearance is desired. The high sensitivity of the receiver allows it to be placed behind speaker grills and still recieve IR commands up to 80ft away.

Features:

  • Works with all types of cable boxes, satellite boxesand TV's
  • Surface mount design
  • Low-profile - easy to hide
  • Proprietary ambient noise-suppression technology forreliabel operation in any lighting environment including compact fluorescents.
  • Wire channel for clean installation
  • Talk-back LED for system testing
  • IR modulation frequency bandwidth: 25-60KHz
  • Standard reception range: Up to 80ft
  • Reception angle: +/- 60 degrees

Includes:

  • (1) DL85 DinkyLink
  • (1) 789-44 Connecting Block
  • (1) 781ERGPS Power Supply
  • (4) 283D Blink-IR Mouse Emitters
  • (1) Each White, Silver and Black Trim pieces to match AV components

Specifications:

  • Dimensions of receiver: 2.55" x 0.55" x 0.35"
