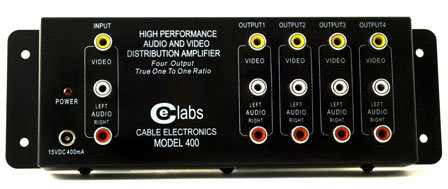

Cable Electronics CEL-AV400
1x4 Composite Audio/Video Distribution Amplifier

OUR PART #:  CEL-AV400

High quality amplifier allows for multiple signal distribution equal to source signal output with no signal loss.
Learn More
Our Price: $59.66
List Price: $94.90
You save 37%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Cable Electronics CEL-AV400
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

High quality amplifier allows for multiple signal distribution equal to source signal output with no signal loss. Distribute audio, composite video and s-video television signals from a single A/V source to multiple television monitors. Daisy chain several units for larger displays with great picture quality.

Cable Electronics CEL-AV400 Features:

  • Compatible with all HDTV component video signals
  • Daisychain several units for larger displays
  • Allows up to 150' runs
  • Save the expense of additional A/V receivers

Cable Electronics CEL-AV400 Specifications:

Video

  • Nominal input Level: 1V peak-to-peak
  • Gain: 2V unterminated, 1V terminated; 75 Ohms
  • Input Impedance: 75 Ohms
  • Output Impedance: 75 Ohms
  • In to Out Isolation: 50Hz to 10MHz 32dB port to port
  • Out to In Isolation: 50Hz to 10MHz 60dB
  • Return Loss: 50Hz to 10MHz 20dB
  • Video Bandwidth: > 10MHz

Audio

  • Gain: Unity
  • Input Impedance: 22kOhm
  • Output Impedance: 1kOhm
  • THD: 0.05% at 1V input level
  • Frequency Response: 20Hz to 100kHz
  • Channel Separation: >75dB @ 1kHz
  • In to Out Isolation: 60dB
  • Out to Out Isolation: 60dB
  • Signal to Noise: 100dB @ 2V (out)

Power

  • Power Requirement: External 9 or 10V AC @ 500 mA with a 2.1mm ceterdiameter coaxial connector
