JK Audio Universal Host
Desktop Digital Hybrid Telephone Interface

OUR PART #:  UHOST

The JK Audio Universal Host easily converts your IP or PBX telephone into a professional, affordable interview station.
Learn More
Our Price: $627.00
List Price: $660.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JK Audio Universal Host
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JK Audio Universal Host easily converts your IP or PBX telephone into a professional, affordable interview station. This desktop digital hybrid provides talk show quality caller audio from most telephone systems. Simply connect between your telephone handset and the base of your telephone.

Talk Show Quality Interviews:  Connect a professional dynamic mic and headphones to Universal Host to capture your voice in full audio bandwidth, while maintaining excellent separation between your voice and the caller.

Conference Room:  Easily connect your PA system to the existing IP or PBX telephone system. The echo canceller algorithm prevents feedback and allow full duplex conversations.

The 16 bit USB audio codec allows stereo recording at up to 48 kHz sampling rate, with the talent voice on the left channel in full bandwidth, and the caller on the right. Play recordings from your computer directly into the phone system.

The digital hybrid connects audio signals to your IP or PBX type telephone system through the telephone handset cord. The Digital Signal Processor (DSP) continuously monitors both transmit and receive audio signals to deliver excellent separation. This proprietary, dual-convergence echo canceller algorithm can achieve excellent separation without any setup, and without sending a noise burst down the line.

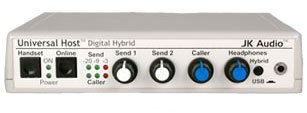

Universal Host provides connections for a microphone, headphones, mixer, sound card, and telephone handset. The stereo output jack on the back of the unit provides your voice on one channel and only the caller’s voice on the other channel. The balanced XLR output jack contains only the caller’s voice. The Handset and Online buttons select between talking on the handset, or sending and receiving through the audio connections. A second switch selects between monitoring the caller or listening to the USB codec over the headphones.

JK Audio Universal Host Features:

  • 16 bit USB Audio CODEC
  • 16 bit DSP technology
  • Excellent separation of caller and talent voice
  • Proprietary auto null algorithm, 50 dB null
  • XLR input (mic/line switch)
  • 1/8" (3.5mm) line input
  • XLR caller output
  • 1/8" (3.5mm) line output
  • 1/8" (3.5mm) headphone jack, source selector switch
  • Send & Receive LEDs
  • Switch selects between electret, dynamic, and carbon handset types
  • Made in USA

JK Audio Universal Host Specifications:

  • Input:
    • Mic/Line:  Balanced Female XLR, 1 kOhm, 15 mVRMS (-35 dBu) nom. Mic/Line pad switch = +6dBu max
    • Line:  1/8" (3.5mm) mono, 20kohm, 250 mV RMS (-10 dBu) nom.
  • Output:
    • Balanced:  Male XLR, 200ohm, 500 mV RMS, (-4 dBu) nom. +14 dBu max
    • Unbalanced:  1/8" (3.5mm) stereo, 50 ohms, 250 mV RMS (-10 dBu) nom. +6 dBu max, Left = send, Right = caller.
    • Headphone:  1/8" (3.5mm) stereo, 8 ohms, 1/2 watt/ch
  • USB:
    • Connector:  Mini Type B female
    • Standard:  v2.0
    • Sampling Rates:  32 kHz, 44.1 kHz, 48 kHz
  • Handset:  RJ22 4P4C
  • Phone Base:  RJ22 4P4C
  • Handset Type:  Switch selects electret, dynamic, or carbon handset microphone types.
  • Isolation:  1500 VAC
  • Frequency Response:  Telephone Side 200 Hz - 3600 Hz
  • Power:  120-240 VAC power supply (included).
  • Size:  7” x 6” x 1.6” (18 x 15 x 4.2 cm)
  • Weight:  2.2 pounds
