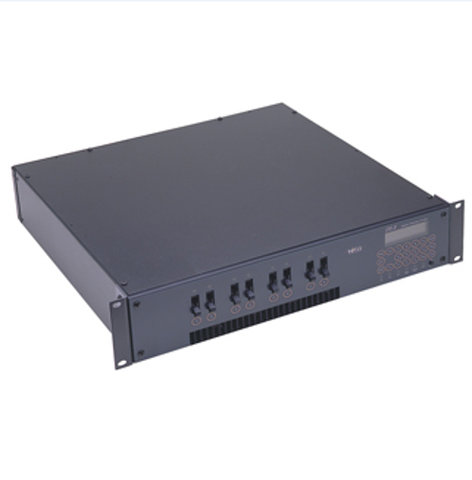

Leviton NDS08-2KO Dimmer Pack
with Knockout Panel, 8 x 2.4 kW

OUR PART #:  NDS08-2K0

Leviton's NSI's DS Series NDS08-2KO dimmer system features high power capacities in an easy-to-service compact and modular design.
Learn More
Our Price: $1,930.50
List Price: $2,112.14
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Leviton NDS08-2KO Dimmer Pack
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Leviton's NSI's DS Series NDS08-2KO dimmer system features high power capacities in an easy-to-service compact and modular design.

The NDS08-2KO combines convenient mobility with a rugged design and high caliber performance for a variety of lighting application demands.  NSI's innovative modular design concept provides easy front panel access for control and dimmer module replacement even while the systems are rack mounted.  This feature is important for touring groups and also permanently installed systems where complete pack removal is difficult or impossible.  The DS digital dimmer systems include a 16 character liquid crystal display and front panel keypad for intuitive access to features like backup presets with fade time, soft patch of DMX and NSI Micro-Plex control signals, O-IOVDC analog input control, and dimmer module temperature monitoring.  LEDs on the front panel also provide status to a host of functions like dimmer control level, active power sources, active DMX512 and NSI Micro-Plex control signals, and over temperature warning.  A DMX512 termination switch is also provided on the front panel.

Leviton NDS08-2K0 Dimmer Pack Features:

  • 8-2400 watt dimmer/relay channels
  • 19,200 watts maximum power capability
  • 2 pole 80 amp power feed
  • 400 microsecond toroidal filtering
  • 20 button function keypad
  • Liquid crystal display (backlit 16 character x 2 line)
  • 400 programmable time fade presets
  • Non-volatile EEPROM preset and softpatch storage
  • Valid DMX signal indicator
  • Valid NSI Micro-Plex signal indicator
  • Line power indicator LEDs
  • Individual dimmer load LED indicators
  • Temperature status LED
  • Front panel accessible DMX512 termination switch
  • 120V input power
  • 15V RMS preheat range
  • Adjustable level test switches can be set to bump or latch action
  • Over voltage and over temperature protection

Leviton NDS08-2K0 Dimmer Pack Specifications:

  • Dimming:
    • Individual dimmer test/lamp focus buttons
    • 10,000 AIC branch rated fully magnetic circuit breakers
    • Rugged dual SCR dimmer design
    • Automatic line regulation/compensation for power fluctuations
    • 8 channel/single phase power operation
    • 12 channel/single or three phase power operation
    • Available in Edison/U-ground, stage pin or hardwired versions
    • 1 output per dimmer
    • Programmable maximum and minimum levels for each dimmer
    • Pre-programmed dimming curve for Advance Mark X™ fluorescent dimming ballast
    • LCD dimmer feedback including current temperature, control level and type of control signal
  • Mechanical:
    • Unique modular dimmer design
    • Unique modular control electronics design
    • Modules are front panel accessible and plug-able for easy cleaning and service
  • Modular Rack Dimmers:
    • Highest power density on the market, requiring only 2 EIA 19" rack spaces
    • Internal variable speed cooling fan
    • Recommended minimum of one rack space between packs to maintain adequate cooling
  • Control:
    • DMX512 in/out (5 pin XLR male and female)
    • NSI Micro-Plex in/out (3 pin XLR male and female)
    • NSI Luma-Net® architectural (plug-able 6 screw terminal block type)
    • O-10VDC analog control Inputs (15 pin D-Sub, male)
