Canare L4E6AT
4 Conductor Starquad Microphone Cable

OUR PART #:  L4E6AT-BY-FOOT

NOTE: The L4E6AT cable is priced per foot The Canare L4E6AT is a 20 AWG Star Quad cable specifically designed for point to point wiring in fixed installations.
Learn More
Our Price: $0.50

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Canare L4E6AT
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Similar Products

NOTE: The L4E6AT cable is priced per foot

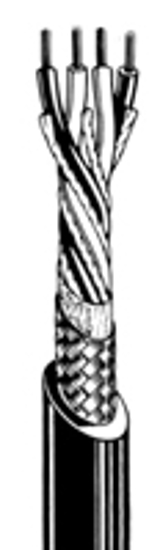

The Canare L4E6AT is a 20 AWG Star Quad cable specifically designed for point to point wiring in fixed installations. Aluminum Foil Shielding provides 100% coverage. Slick, easy to pull PVC jacket with internal Dupont Kevlar 29 cable filler, stronger than steel, can resist stretching or kinking of wires when pulled through conduit bends. Foil shield & drain wire strips easily for quick assembly work (1/3 the assembly time of braided shields). Irradiated PE conductor insulation resists solder iron meltdown.

Applications

  • Microphones
  • Permanent Installations
  • Audio Rack Wiring
  • PA Systems

Canare L4E6AT Features:

  • Aluminum foil shield, 100% coverage
  • Built in Dupont Kevlar 29
  • Drain Wire
  • Cross Linked PE Insulation
  • Reduced Handling Noise
  • Rejects EMI and RFI

Canare L4E6AT Specifications:

  • Nom. O.D.: .244"
  • Jacket Nom. Thick.: PVC .047"
  • Brittle Point: -22┬░ F
  • No. of Cond.: 4
  • Insul. Type, Thick.: IPE, 15.7mm
  • Cond-AWG: 23 AWG
  • Pitch Twist Quad: .99"
  • Shield Coverage: 100% Alum. Tape
  • Cond. D.C.R.: 19.4 ohm/1000ft
  • Nom. Cap.:
    • 46 pF/ft between twin Blue and twin White conductors
    • 64 pF/ft between conductors to shield
