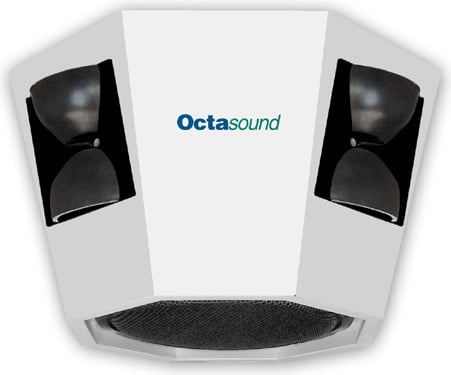

Octasound SP810A
Central Speaker System: 10" Woofer, 4x 6"x6" Compression Horn/Drivers

OUR PART #:  SP810A

Octasound's SP810A is a full-fidelity (40 Hz - 20 kHz) central speaker system.
Learn More
Our Price: $1,053.00
List Price: $1,560.00
You save 33%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Octasound SP810A
Qty:
Usually ships in 7-14 business days.

Similar Products

Octasound's SP810A is a full-fidelity (40 Hz - 20 kHz) central speaker system.  The SP810A tuned port enclosure contains an efficient 10" woofer matched to 4 compression horns & drivers.  The frequency spectrum of the woofer and horns is determined by an internal crossover network that is optimized to maximize performance.  This combination ensures full fidelity reproduction from an extremely compact central speaker system.

The SP810A is extremely sensitive with an SPL of 99 dB per watt at 1 M, hence very little amplifier power is required to obtain the required sound pressure levels.  At maximum RMS input power, the SP820A can produce 123 dB SPL at 1 M.

The SP810A can withstand input power of 250W RMS.  The SP810A also contains a built-in, self-resetting thermal protective circuit.  This protects the high frequency drivers from excessive and distorted (10% THD) input levels.

The SP810A provides coverage over 360° Horizontal & 180° Vertical plane.  These wide dispersion characteristics will permit a large area to be covered by a single SP820A.

The SP820A is only 10" (25.4 cm) high & weighs 44 lbs. (20 kg).  The SP820A can be installed in low ceiling areas and close to lights without casting shadows.  The low weight permits suspension using readily available hardware such as closed link chains, wire, rope, etc.  The combination of small dimensions and low weight permits the SP820A to be shipped inexpensively via standard couriers or parcel service companies.

Octasound SP810A Specifications:

  • Frequency Reponse:
    • 40 Hz to 20 kHz ±10dB (on axis)
    • 50 Hz to 12 kHz ±6dB (on axis)
  • Optimum Power:  50 to 150W RMS total
  • Power Handling:  250W RMS total, 500W peak (THD:  < 10%)
  • Impedance:  8 Ohms nominal (25 & 70V optional)
  • Dispersion:  360° Horizontal, 180° Vertical (±6dB Level 100 Hz to 10 kHz)
  • Sensitivity:  99 dB/watt/meter on axis (Pink Noise 100 Hz to 10 kHz averaged)
  • Maximum SPL:  117dB RMS / 120dB Peak at 1 meter
  • Temperature Range:  -10°C to 55° C (-14° Fto 131° F)
  • Humidity Range:  0% to 80% non-condensing
  • Weight:  44 lbs (20 kg)
  • Material:  Exterior treated wood composite panel
  • Mounting Hardware:  Four 1.5" eye nuts, 0.75"I.D. Eye 1/4 x 20 thread
  • Shipping weight:  52 lbs (21.8 kg)
  • Shipping Dimensions:  20" (50.8 cm) square, by 14" (35.6 cm) high
