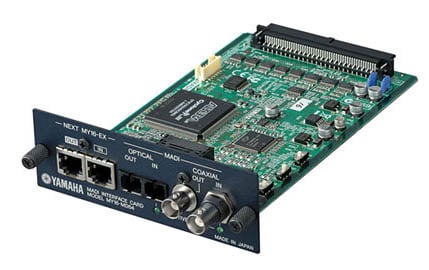

Yamaha MY16-MD64 16-Channel MADI I/O Card

The MY16-MD64 card adds 16 channels of MADI input and output connectivity to Yamaha devices with mini-YGDAI slots. More and more professional audio applications are adopting the MADI digital audio interface because of its reliability and long distance capability.

A Plug-in, expandable Solution for MADI Multi-channel Audio Networking

The reliability and simplified installation and maintenance provided over long distances makes MADI an ideal choice for multi-room production facilities, outdoor broadcast venues, large live sound and recording applications, and more.

Specifications:

• Format: MADI
• Number of Inputs: 16
• Number of Outputs: 16
• Bit Length: 24-bit
• Connector:
  • BNC x2 (MADI coaxial)
  • MADI optical x2
  • RJ-45 x2 (for MY16-EX)
• More Information: expandable to 64IN/64OUT with MY16-EX cards
