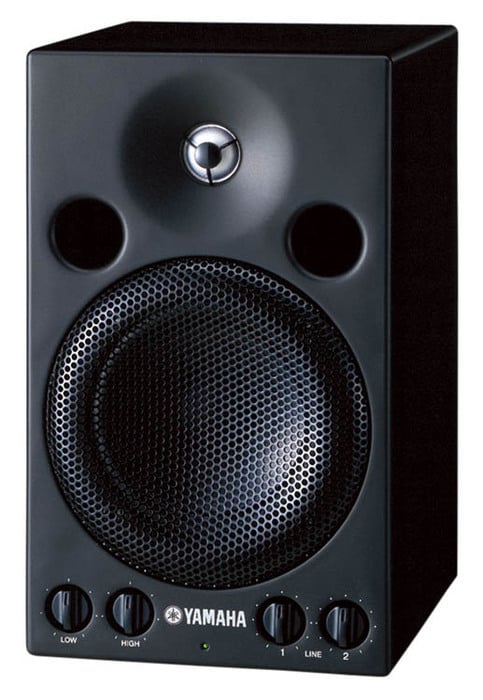

Yamaha MSP3-CA 4" Powered Studio Monitor

OUR PART #: MSP3-CA

Copied to clipboard

The MSP3 Powered Monitor Speaker is a 2-way powered monitor speaker system that delivers quality audio and excellent cost performance. ...Read more

Yamaha MSP3-CA 4" Powered Studio Monitor Image 1
Yamaha MSP3-CA 4" Powered Studio Monitor
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The MSP3 Powered Monitor Speaker is a 2-way powered monitor speaker system that delivers quality audio and excellent cost performance. Designed for use in personal music production systems, each unit features a built-in 20-watt amplifier that drives both the 4" cone and 7/8" tweeter. Each monitor is equipped with a balanced XLR input, for direct compatibility with professional equipment, a balanced phone jack input and an unbalanced RCA jack input. The MSP3 also features separate volume controls for the LINE 1 (RCA jack) input and LINE 2 (XLR/phone) input plus HIGH and LOW tone controls for sound tailoring. The MSP3’s bass-reflex enclosure incorporates Yamaha's Waveguide Technology for uniform dispersion of the tweeter's high frequencies. Magnetic shielding and compact size allows the monitors to be placed near any type of audio, video or computer equipment. The monitor can also be attached to a mic stand with the optional BMS10A Mic Stand Adapter.

Features

  • Compact, 2-way powered monitor
  • Built-in 20W amplifier
  • Two line inputs
  • Balanced XLR, balanced phone jack, & unbalanced RCA inputs
  • High and Low tone controls

Specifications

  • Speaker Section:
    • Components:
      • LF: 10cm (4") cone
      • HF: 2.2cm (7/8") Tweeter
    • Enclosure: Bass-reflex Type
  • Amp Section:
    • Output Power: 20W
    • Input Sensitivity/Input Impedance:
    • Line 1: -10dB / 10k Ohms
    • Line 2: +4dB /10k Ohms
  • Input Connectors:
    • Line 1: RCA pin unbalanced
    • Line 2: XLR balanced or Phone balanced
  • Controls:
    • Level Control: Line 1& Line 2
    • Tone Control: Low / High
    • Power SW: On/Off
  • Power Requirement
    • US & Canadian Models: 120V AC 60Hz
    • Power Consumption: 30W
  • General
    • Type: 2-way. Powered speaker
    • Crossover Frequency: 4 kHz
    • Overall Frequency Response: 65 Hz - 22 kHz
    • Maximum SPL: 98dB (1m)
    • Dimensions (W X H X D): 5-11/16" × 9-5/16" × 6-9/16" (144 × 236 × 167 mm)
    • Weight: 8.16 lbs (3.7kg)
