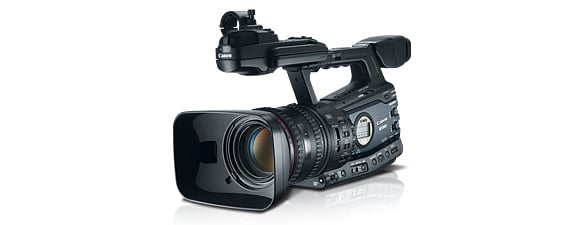

Canon XF305
Professional HD Camcorder with Genlock, HD/SD-SDI and Timecode Terminals

OUR PART #:  XF305

Canon continues to innovate and develop image acquisition products for the most demanding professional.
Learn More
Our Price: $3,999.00
List Price: $7,999.00
You save 50%!
Write the first review.
Canon XF305
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Canon continues to innovate and develop image acquisition products for the most demanding professional. The Canon XF305 Professional Camcorder features 50Mbps MPEG-2 4:2:2 recording to Compact Flash (CF) cards for unsurpassed image quality and efficient, robust workflow at an affordable price. It is ideally suited to match the requirements of electronic newsgathering (ENG) crews, independent filmmakers, documentary producers, event videographers and military agencies.

Utilizing file-based MPEG-2 compression with an MXF File Wrapper ensures the widest compatibility with existing industry infrastructure, metadata and non-linear editing (NLE) systems. And 4:2:2 color sampling provides ultra-fine transitions in tone and color for maintaining the highest quality image for use in advanced post production.

A newly developed Genuine Canon 18x HD L-Series lens along with three Canon native 1920 x 1080 CMOS Image Sensors delivers pristine image quality.

Incorporating industry-standard HD-SDI output, genlock input and SMPTE time code input/output terminals makes the Canon XF305 perfectly matched for live application and multi-camera shooting.

The XF305 also offers multiple recording bit rates, resolutions and variable frame rates to expand your creative flexibility, and allow you to work in virtually any production environment. And complete customization over the image, display and operation makes the XF305 a camcorder that can be tailored to fit your individual needs.

Canon XF305 Camcorder Includes:

  • XF305 Camcorder with lens cap
  • Lens Hood
  • Eyecup
  • Battery Pack BP-955
  • Compact Power Adapter CA-930
  • DC Cable DC-930
  • Wireless Controller WL-D6000
  • Shoulder Strap SS-1200
  • Component Cable DTC-1500
  • Canon XF Utilities Disc

Canon XF305 Camcorder Specifications:

  • Standard Definition or High Definition: High Definition
  • Power Supply (rated): 7.4V DC (battery pack)
  • Video Recording system:
    • Compression: MPEG-2 Long GOP
    • Color Space:4:2:2 (at 50Mbps recording)
    • File Format: MXF
  • Recording Modes:
    • 50Mbps (CBR) 4:2:2, 1920x1080, (60i/30p/24p), 1280x720(60p/30p/24p)
    • 35Mbps (VBR) 4:2:0, 1920x1080 (60i/30p/24p), 1280x720(60p/30p/24p)
    • 25Mbps (CBR) 4:2:0, 1440x1080 (60i/30p/24p)
  • Audio Recording system: 2-Channel, PCM digital recording, 16-Bit; 48kHz
  • Image Sensor: (3) 1/3-inch CMOS
  • Total Pixels: Approx. 2.37 megapixels (2044 x 1160 pixels) each x 3
  • Effective Pixels: Approx. 2.07 megapixels (1920 x 1080 pixels)
  • Maximum recording Time: 64GB Compact Flash (CF) card
    • Greater capacity is possible when two cards are used
    • 25Mbps: 310 minutes
    • 35Mbps: 225minutes
    • 50Mbps: 160 minutes
  • Lens: Canon 18x HD L Series Zoom, 4.1-73.8mm (35mm equivalent 29.3 -527.4mm), f/1.6-2.8
  • Focusing System: TVAF plus External Phase Difference Metering Sensor, Autofocus (Instant AF, Normal AF, Face AF), Manual, Full Manual
  • Max Shutter Speed: 1/2000
  • Minimum Focusing Distance: 20mm (wide macro), 1m (entire zoom range)
  • White Balance: Auto, Manual, Custom (2000K - 15000K in 100K increments), Daylight, Tungsten
  • Frame Rate: 60i, 60p, 30p, 24p (50i, 50p and 25p optional upgrade available through Canon Factory Service Center)
  • Minimum Illumination: Full AUTO mode: 4.5 lux (Shutter speed 1/60, Gain +21dB); Manual mode: 08 lux (Shutter speed 1/4, Gain +33dB), (when 60i is selected)
  • Genlock Terminal: BNC (input only)
  • HD/SD-SDI Terminal: BNC (output only), with embedded audio
  • Timecode Terminals: BNC (input/output)
  • Image Stabilization: SuperRange Optical (Lens Shift) Modes: Standard, Powered, Dynamic, Off
  • Filter Diameter: 82mm
  • Viewfinder: 0.52" color widescreen, approx. 1,555,000 dots, approx.100% field of view
  • LCD Screen: 4.0" color widescreen LCD, approx. 1,230,000 dots, approx.100% field of view
  • Microphone: Stereo electrect condenser microphone
  • Recording Media:
    • CF Card: 2 Slots, Movie files only
    • SD Card: Still images, Custom Picture Data, Clip Metadata, Custom Settings
  • USB Terminal: Mini-B USB 2.0 Hi-Speed
  • Video Terminal:
    • Component: Output only
    • Composite: A/V terminal 3.5mmmini-jack, output only, BNC terminal, output only, signals can be output simultaneously through A/V terminal and BNC terminal
  • Audio Terminal: XLR 3-pin jack (2), Switchable between MIC/LINE
  • HDMI Terminal: Yes (Type A)
  • AV Mini Terminal/Headphone Terminal: 3.5mm stereo mini-jack
  • Operating Temperature range: 32° - 104°F, 85% relative humidity
  • Dimensions: Approx. 6.0" x 9.3" x 15.0" (not including lens hood, eyecup, grip belt)
  • Weight (not including lens hood and eyecup): 5.9 lbs (includes grip belt)
  • Weight: 6.6 lbs (includes grip belt, lens hood, BP-955, CF Card (x1) and SD card/not including eyecup)
