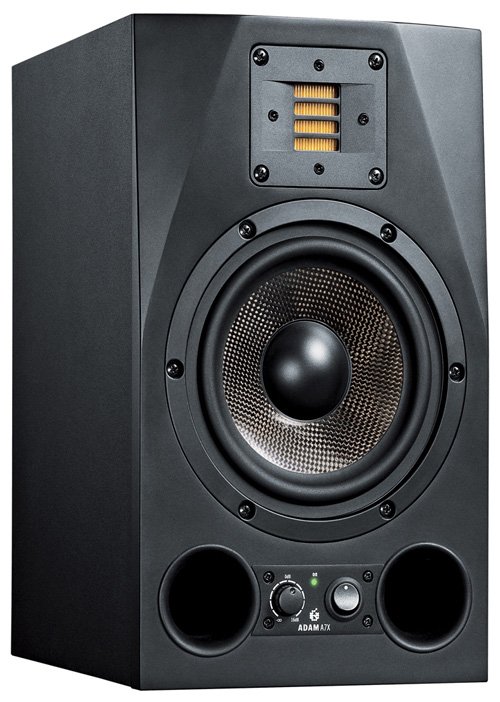

ADAM Audio A7X
7" Near-Field 2-Way Active Studio Monitor

OUR PART #:  A7X

The predecessor to ADAM Audio's A7X, the A7, became the most famous of all ADAM monitors in a very short time.
Learn More
Our Price: $749.99

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ADAM Audio A7X
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The predecessor to ADAM Audio's A7X, the A7, became the most famous of all ADAM monitors in a very short time.  Not only has it been reviewed over three dozen times with outstanding results, it has also received numerous awards.  The A7 quickly gained mass appeal, praised in many of the world's largest internet forums.  Still today, the A7 are the reference monitors in many smaller studios.

With the A7X, ADAM Audio proudly presents the evolution of a legend. It takes everything that made the A7 such an outstanding speaker to a new level.

Driver technology
The first aspect that distiguishes the old from the newer model is the X-ART tweeter.  The "X" stands for "eXtended frequency response" and thus for one of the features of the Accelerating Ribbon Technology that has been drastically improved: the frequency response.  It now extends all the way up to 50 kHz.  In addition, the X-ART tweeter has a higher efficiency and higher maximum sound pressure levels.

The perfect integration with the lower frequencies has been achieved with a redesigned 7" midwoofer.  It has a much bigger voice coil (1.5”) and is driven by an amplifier with twice the power compared to its predecessor.  This combination produces an amazing sound and pressure levels with an almost distortion-free musical reproduction.

Amplifiers / controls
Each driver has its own dedicated amplifier.  A 50W A/B amp is responsible for the X-ART tweeter, while the midwoofer is being driven by a 100W PWM amplifier.  The front panel includes a power switch and a control for the volume that retains the volume setting independently from the on/off switch.

On the rear panel are several additional controls: a gain for the high frequencies (± 4dB) and two shelf filters for high and low frequencies. Plus, to ensure greater compatibility, there are both XLR (balanced) and RCA (unbalanced) connectors.

ADAM Audio A7X Specifications:

  • Mid-Woofer:
    • Number: 1
    • Basket Ø: 7" (175 mm)
    • Voice coil Ø: 1.5" (38 mm)
    • Cone material: Carbon/Rohacell/Glass Fiber
  • Tweeter:
    • Number: 1
    • Type: X-ART
    • Diaphragm area: 4 sq. inch (2420 sq. mm)
    • Equiv. Diaphragm Ø: 2" (56 mm)
    • Velocity transform ratio: 4:1
    • Diaphragm weight: 0.17 g
  • Built-in Amplifiers:
    • Mid-Woofer: 1
      • Type: PWM
      • Amp. power RMS / music: 100 W / 150 W
    • Tweeter: 1
      • Type: A/B
      • Amp. power RMS / music: 50 W / 75 W
  • Control Panel:
    • Input Sensitivity: -infinity to +14 dB
    • High shelve > 5 kHz: ±6 dB
    • Low shelve < 300 Hz: ±6 dB
    • Tweeter gain: ±4 dB
  • Input connectors: Analog XLR / RCA
  • General Data:
    • Frequency response: 42 Hz - 50 kHz
    • THD 90dB/1m > 100 Hz:: < or = 0.5 %
    • Long term output > or = 106 dB
    • Max. peak: > or = 114 dB
    • Crossover frequencies: 2500 Hz
    • Input impedance: 30 KOhm
    • Weight: 20.3 lbs (9.2 kg)
    • Magnetically shielded: No
    • Dimensions: 13.5" H x 8" W x 11" D (337 x 201 x 280 mm)
    • Warranty: 5 Years
