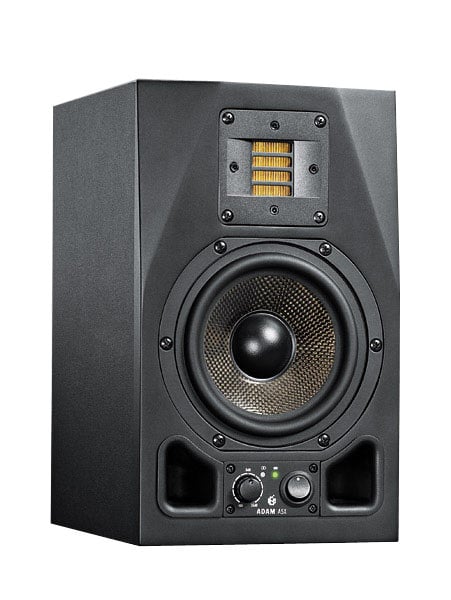

ADAM Audio A5X 5.5" Near-Field 2-Way Active Studio Monitor

OUR PART #: A5X

Copied to clipboard

The similar dimensions and name could make one believe that ADAM Audio's A5X is nothing more than a newer version of the A5. ...Read more

ADAM Audio A5X 5.5" Near-Field 2-Way Active Studio Monitor Image 1
ADAM Audio A5X 5.5" Near-Field 2-Way Active Studio Monitor Image 2
ADAM Audio A5X 5.5" Near-Field 2-Way Active Studio Monitor
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The similar dimensions and name could make one believe that ADAM Audio's A5X is nothing more than a newer version of the A5. A quick listening however leaves no doubt that the A5X is much more than that.

Like all other models of the AX-Series it features the proprietary X-ART tweeter. The very data of this technology shows that it is at the forefront of what tweeters can accomplish. Numerous listening tests have confirmed this.

A 5.5" Midwoofer reproduces the frequencies below 2.5 kHz. The diaphragm is made from Carbon fiber/Rohacell/Glass fiber, which is the same composite structure shared in the next two bigger models. This material with minimum weight and maximum rigidity prevents break up resonances, resulting in an outstanding dynamic behaviour and impeccable sound characteristics.

A very handy and exclusive feature found in the two smaller AX monitors is the Stereolink. This is accomplished by a pair of additional RCA connections that allow for a bypass of the second stereo channel to the other speaker.

This technology connects two A5X speakers in such a manner as to allow the user the option to control the overall stereo volume of the system from either speakers gain control. This makes the A5X a natural for "mixer-less" desktop applications where overall system volume needs to be adjusted easily.

ADAM Audio A5X Specifications:

  • Mid-Woofer:
    • Number: 1
    • Basket Ø: 5.5" (145 mm)
    • Voice coil Ø: 1.5" (32 mm)
    • Cone material: Carbon/Rohacell/Glass Fiber
  • Tweeter:
    • Number: 1
    • Type: X-ART
    • Diaphragm area: 4 sq. inch (2420 sq. mm)
    • Equiv. Diaphragm Ø: 2" (56 mm)
    • Velocity transform ratio: 4:1
    • Diaphragm weight: 0.17 g
  • Built-in Amplifiers:
    • Mid-Woofer: 1
      • Type: PWM
      • Amp. power RMS / music: 50 W / 75 W
    • Tweeter: 1
    • Type: A/B
    • Amp. power RMS / music: 50 W / 75 W
  • Control panel:
    • Input Sensitivity: - infinity to +14 dB
    • High shelve: > 5 kHz ±6 dB
    • Low shelve: < 300 Hz ±6 dB
    • Tweeter gain: ±4 dB
  • Input connectors: Analog XLR / RCA
  • General Specifications:
    • Frequency response: 50 Hz - 50 kHz
    • THD 90dB/1m > 100 Hz: < or = 0.6 %
    • Long term output: > or = 102 dB
    • Max. peak: > or = 110 dB
    • Crossover frequencies: 2500 Hz
    • Input impedance: 30 KOhm
    • Weight: 14.6 lbs (6,6 kg)
    • Magnetically shielded: No
    • Dimensions: 11" H x 6.5" W x 8.5" D (280 x 170 x 220 mm)
    • Warranty: 5 Years
