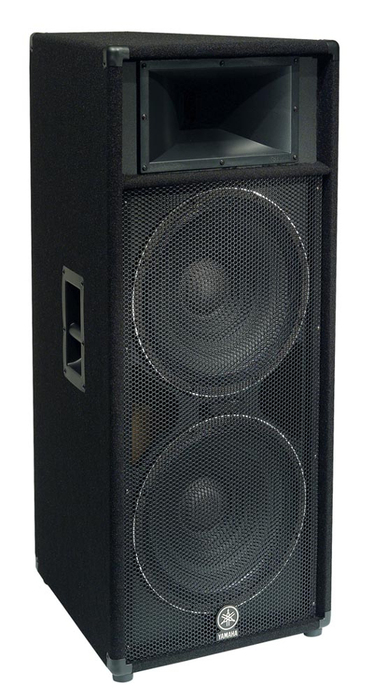

Yamaha S215V 2x15" 2-Way Passive Speaker, 1000W Image 1
Yamaha S215V 2x15" 2-Way Passive Speaker, 1000W
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Yamaha S215V is a Concert Club V Series dual 15" 2-way 2000W peak (4 Ohms) loudspeaker that features a 2" pure titanium dome compression driver, and a 90° H x 40° V dispersion pattern.

An Ideal Match for EMX Series Powered Mixers or P Series Power Amplifiers

The Concert Club V series and Concert Club VC series speakers provide dual phone jacks as well as dual Speakon™ connectors for input and parallel connection. A high-performance PA system can conveniently be created simply by connecting a pair of speakers to an EMX series powered mixer using the phone jack outputs on a box-type model, or the Speakon™ connectors on a console model. When used in conjunction with P series power amplifiers and an MG series mixing console, you have the flexibility to add monitor speakers and a subwoofer to create a versatile live sound system. The YSProcessing (Yamaha Speaker Processing) switch provided on the EMX series powered mixers and P series amplifiers enhances performance with single-woofer models (S112V, S115V, C112V(A), C115V(A), and monitor models) for even greater sonic impact.

Top-Class Parts and Optimized Wood Enclosures

The Concert Club series has achieved worldwide acclaim for its superior sound and durability, becoming a standard for audio quality and reliability. Painstaking selection of parts and components, optimized wood enclosures, and a thorough reevaluation of speaker capacity have given the new Concert Club series a robust sonic presence that takes their performance to a new level. Even as your system changes and expands years down the road, you can expect the Concert Club series to deliver consistently excellent audio quality.

Classic Design Combines Strength and Sophistication

A classic, unpretentious design makes these speakers virtually timeless. The slightly rounded front grille enhances both style and durability. The Concert Club V series features a durable exterior with a carpeted surface, and large metal handles for improved portability. They're designed to endure the rigors of a sound reinforcement system that will be set up and taken down night after night.

Built-In Protection

As a much-requested solution to the problem of tweeter destruction that is a regrettably common occurrence in the equipment and studio rental business, the Concert Club series is provided with a protection circuit that prevents excessive tweeter input due to acoustic feedback or other causes.

Yamaha S215V Specifications:

  • Speaker Type: 2-way full-range speaker
  • Frequency Response (-10dB): 42 Hz - 16 kHz
  • Nominal Coverage: 90° H x 40° V
  • Components:
    • LF: 2x 15" cone
    • HF: Horn, 2" voice coil driver
  • Power Rating:
    • Noise: 500W (EIA)
    • Program: 1000W
    • Peak: 2000W
  • Nominal Impedance: 4 Ohms
  • SPL:
    • Sensitivity (1W; 1m on axis): 99dB SPL
    • Continuous (Calculated): 126dB SPL
    • Peak (Calculated): 132dB SPL
  • I/O Connectors: 2x Phone, 2x speakON
  • Shape: 25° Trapezoidal
  • Finish: Carpeted Finish
  • Handle: 2
  • Dimensions:
    • Width: 19-1/2" (495 mm)
    • Height: 46" (1167 mm)
    • Depth: 23-1/2" (597 mm)
  • Net Weight: 104.1 lbs (47.2 kg)
