Yamaha CM12V 12" 2-Way Passive Stage Monitor, 350W

OUR PART #: CM12V-CA

Copied to clipboard

The Yamaha CM12V is a Concert Club V Series 12" 2-way 700W peak (8 Ohms) floor monitor that features a 2" titanium dome compression driver, 40° H x 90° V dispersion pattern... ...Read more

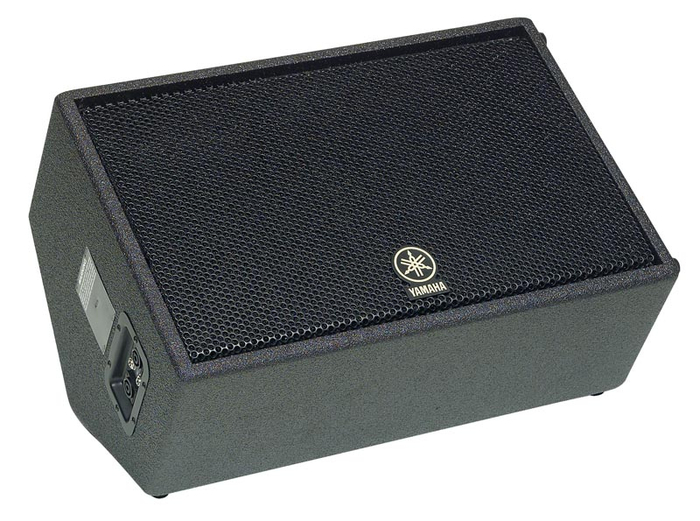

Yamaha CM12V 12" 2-Way Passive Stage Monitor, 350W Image 1
Yamaha CM12V 12" 2-Way Passive Stage Monitor, 350W
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Yamaha CM12V is a Concert Club V Series 12" 2-way 700W peak (8 Ohms) floor monitor that features a 2" titanium dome compression driver, 40° H x 90° V dispersion pattern, and a pole socket to allow for use as a main speaker. An Ideal Match for EMX Series Powered Mixers or P Series Power Amplifiers - The Concert Club V series and Concert Club VC series speakers provide dual phone jacks as well as dual Speakon™ connectors for input and parallel connection. A high-performance PA system can conveniently be created simply by connecting a pair of speakers to an EMX series powered mixer using the phone jack outputs on a box-type model, or the Speakon™ connectors on a console model. When used in conjunction with P series power amplifiers and an MG series mixing console, you have the flexibility to add monitor speakers and a subwoofer to create a versatile live sound system. The YSProcessing (Yamaha Speaker Processing) switch provided on the EMX series powered mixers and P series amplifiers enhances performance with single-woofer models (S112V, S115V, C112V(A), C115V(A), and monitor models) for even greater sonic impact.

Features

  • 2-way, full range passive monitor loudspeaker
  • 12" LF driver and 2" voice coil with horn
  • Nominal coverage 40°H x 90°V
  • 350W/700W program/peak power handling
  • 8-ohm impedance

Specifications

  • Speaker Type: 2-way full-range speaker
  • Frequency Response (-10dB): 60 Hz - 16 kHz
  • Nominal Coverage: 40° H x 90° V
  • Components:
    • LF: 12" cone
    • HF: Horn, 2" voice coil driver
  • Power Rating:
    • Noise: 175W (EIA)
    • Program: 350W
    • Peak: 700W
  • Nominal Impedance: 8 Ohms
  • SPL:
    • Sensitivity (1W; 1m on axis): 97dB SPL
    • Continuous (Calculated): 119dB SPL
    • Peak (Calculated): 125dB SPL
  • I/O Connectors: 2x Phone, 2x speakON
  • Shape: Wedge
  • Finish: Sprayed finish
  • Handle: 1
  • Pole Socket: 1x 1-3/8" (35 mm)
  • Dimensions:
    • Width: 24-3/4" (628 mm)
    • Height: 16-1/8" (410 mm)
    • Depth: 13-3/8" (339 mm)
  • Net Weight: 48.1 lbs (21.8 kg)
