Product Overview

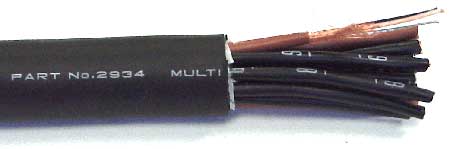

Mogami multicore cables are designed for the highest level of audio performance and feature superb electrical and mechanical characteristics while remaining compact, superflexible and easy to use.
Features:
- Individually twisted shielded pairs
- XLPE (Cross Linked Polyethylene) insulation provides superb electrical characteristics & will not melt or shrink back during soldering.
- Rugged and flexible construction that is easy to handle, even at temperatures down to -20°C (-4°F).
- Easy cable identification system:
- Each channel has a drain wire and served (spiral) bare copper shield. The drain wire simplify termination and can be crimped by the same size contact as the inner conductor pair.
- Individually twisted shielded pairs
- XLPE (Cross Linked Polyethylene) insulation provides superb electrical characteristics & will not melt or shrink back during soldering.
- Rugged and flexible construction that is easy to handle, even at temperatures down to -20°C (-4°F).
- Easy cable identification system:
- - Channel numbers are printed &underlined on each core jacket to ensure correct identification, regardless of which end is stripped.=
- - Outer jackets of each pair are colour coded by standard resistor colour code, allowing quick identification of conductor pairs.
- - Inner conductors are also colour coded based on the international standard resistor colour code. Each pair is colour coded by jacket and conductor colour combination.
- Each channel has a drain wire and served (spiral) bare copper shield. The drain wire simplify termination and can be crimped by the same size contact as the inner conductor pair.
Specifications:
- Cable Core Specifications:
- Conductor: 30/0.08A (0.15mm²) #26AWG (30×#40AWG)
- Insulation: 1.0Ø XLPE (Cross Linked Polyethylene) (0.039")
- Drain Wire: 7/0.18TA (0.18mm²) #25AWG (7×#33AWG)
- Served Shield: Approx. 58/0.10A Served (spiral) Shield
- Jacket (Covering): 2.8Ø Flexible PVC (0.110")
- Specifications:
- Overall Diameter: 15.8 mm (0.622")
- Jacket Thickness: 1.5 mm (0.059")
- Weight: 32 kg/328 ft.
- Electrical & Mechanical Characteristics:
- DC Resistance at 20°C:
- - Inner Conductor: 0.13 W/m (0.04 W/ft.)
- -Shield Conductor: 0.031 W/m (0.0095 W/ft.)
- Capacitance at 1kHz, 20°C:
- - K0: 130pF/m (40pF/ft.)
- - K1: 12pF/m(3.7pF/ft.)
- Inductance: 0.6H/m (0.18H/ft.)
- Electrostatic Noise (Hum Pick-Up)*: 2.5 mV max.
- Electromagnetic Noise at 10 kHz (Inductance of the toroidal core:595H)*: 0.1mV Max.
- Microphonics at 50kW load*: 30 mV max.
- Voltage Breakdown: Must withstand at DC 500V/15 sec.
- Insulation Resistance at DC 125V, 20°C: 100,000 MW x m Min.
- Tensile Strength of one pair (26°C, 65% RH): 274 N
- Emigration: Non-emigrant to ABS resin
- Applicable Temperature: -20°C¾ +70°C(-4°F¾ +158°F)
- *Using standard testing methods of Mogami Wire & Cable Corp.
