Radio Design Labs D-J1
Mic/Line Input Panel Assembly, XLR Terminal Block

OUR PART #  D-J1

Our Price: $49.10
List Price: $65.66
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

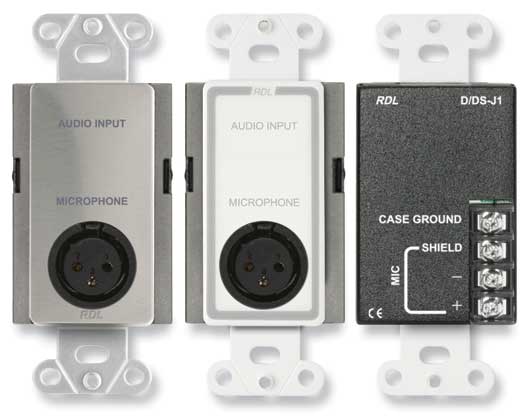

Radio Design Labs' D-J1 is a complete microphone input panel assembly.  Connections to the female front-panel XLR jack are made on a rear barrier block.  Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and - (XLR pin 3).  The installer may install a jumper between the SHIELD connection and CASE GROUND if desired.  The back of the D-J1 is finished with a metal enclosure clearly labeled for easy installation.

The D-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U).  They may be mounted directly into cabinets or most standard US single gang electrical boxes.

Additional Features:

  • Wall Mounted Microphone Input Panel
  • XLR Input Connector with Gold Contacts
  • Barrier Block Wiring Connections
  • Ground-Lift Terminals on Barrier Bloc

Typical Performance:

  • Input Connector: XLR female gold contacts
  • Output Connector: Barrier block
  • Output Connections (4): CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3)
  • Power Requirement: Passive
  • Dimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
  • Mounting Box Req.: Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
