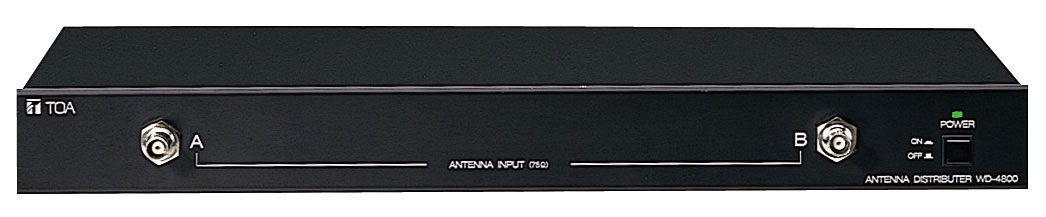

The TOA Wireless Antenna Distributor WD-4800 is designed to be used in conjunction with VHF/UHF band system. It comes with two channels, in which two input signals are mixed and distributed to four outputs. The WD-4800 also has four DC power distribution outputs.
Power Requirement: 120V (120V/230V selectable)
Power Consumption: 25W
Frequency Range: VHF/UHF
Antenna Input: 2 input (front × 1, rear × 1), 75 O, BNC (phantom powering for antenna)
Antenna Output: 4 output, 75 ohm, BNC
DC Power Supply: 4 output (each output 13VDC/250mA)
