TOA P-924MK2 UL Single-Channel Modular Power Amplifier, 240W

OUR PART #: P924MK2UL MFR #: P-924MK2 UL

Copied to clipboard

THE TOA 900 SERIES are widely recognized as the industry standard in installed sound system amplification. ...Read more

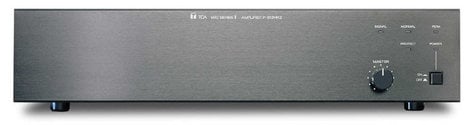

TOA P-924MK2 UL Single-Channel Modular Power Amplifier, 240W Image 1
TOA P-924MK2 UL Single-Channel Modular Power Amplifier, 240W
Our Price: $1,275.50
List Price: $1,578.40
You save 19%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

THE TOA 900 SERIES are widely recognized as the industry standard in installed sound system amplification. When reliability and performance are critical – such as in paging and music distribution for airport, hospital, and industrial sound systems – you can count on the TOA 900 Series to perform consistently, day-in and day-out.

The P-924MK2 (240W) Single Channel Power Amplifier is engineered for high performance with wide frequency response, very low noise and distortion, and excellent output regulation. A single module slot allows you to easily configure custom configurations using TOA plug-in modules with an extensive array of features and connector types. Outputs include transformer isolated 25V, 70V and 8Ω plus a direct low-impedance mode if non-transformer operation is required.

Other features include a direct input, selectable input sensitivity, low-cut switch and protection circuitry.

The 900 Series Power Amplifiers are UL and cUL Listed and carry a five-year warranty.

Features:

  • Modular Single Channel Power Amplifiers for paging, background / foreground music distribution and music / messaging-on-hold
  • Engineered for High Performance with wide frequency response, very low noise and distortion, and excellent output regulation
  • Input Module Slot accepts most TOA plug-in modules for custom system configurations
  • 25V, 70V and 8Ω Transformer-Isolated Speaker Outputs with screw terminal connector and protective cover plate
  • Direct Low-Impedance Output Mode bypasses output transformer
  • Direct Input for connecting an external mixer or other source
  • Selectable Input Sensitivity to accommodate high or low input levels
  • Master Volume Control
  • Low Cut Switch to limit low frequency response.
  • Normal, Clip, Power, Protect, and Signal Indicators provide unit status
  • Rear Panel AC Convenience Outlet for powering external equipment
  • Turn-On Delay disconnects output during power-up
  • Over-current and Thermal Protection Circuitry prevents potential damage from overload, short-circuit, or overheating
  • Volume Control Security Knob Included
  • UL / cUL Listed
  • Five-Year Warranty

Specifications:

  • Type: Power amplifier
  • Power Requirement: AC mains, 120V, 60Hz
  • Power Consumption: 120V / 3A
  • Output Power:
    • (D) 240W RMS
    • (T) 220W RMS
  • Power Band Width:
    • (D) 20 — 20,000Hz, 0.5% THD
    • (T) 50 — 20,000Hz, 0.5% THD
  • Frequency Response:
    • (D) 20 — 20,000Hz, +/-1dB
    • (T) 20 — 15,000Hz, +/-1dB,
    • (T) 20 — 20,000Hz, +1dB, -3dB
  • T.H.D: 0.01% @ 1kHz, rated output
  • Inputs:
    • One Input Port: Port accepts any input module except T—01.
    • One Direct Input >36 (Use of direct input prohibits use of modular input port.)
    • Input Sensitivity Input Port: 100mV or 1000mV (switchable / 10kΩ Impedance)
    • Direct Input: 100mV or 1000mV (switchable / 10kΩ)
  • Outputs
    • (D) = Direct Main (D): 4Ω, unbalanced
    • Output Regulation (1kHz):
    • (D) Less than 0.5dB, no load to full load
    • (T) Less than 1.0dB, no load to full load
  • S / N Ratio (Band Pass 20—20,000Hz)
    • Input level switch in 0dBV (1000mV) position: 108dB
    • Input level switch in —20dBV (100mV) position: 90dB
  • Controls
    • 1 Input gain control
    • 1 Input level switch
    • 1 Power ON/OFF switch
    • 1 Low—Cut switch
  • Indicators
    • 1 Power LED
    • 1 Protect LED
    • 1 Signal LED
    • 1 Normal LED
    • 1 Peak LED
  • Protection: SeIf—protection, with 2AC fuses and 2DC fuses (inside)
  • Connectors:
    • Input: Card—edge connector and screw—terminal strip
    • Output: Screw—terminal strip
    • AC outlet: 3—pin grounding type
    • AC power cord/plug: SJT, 3—prong type
  • Temperature Range: -10°C to +60°C
  • Finish: Black
  • Dimensions: 420mm (W) X 151.3mm (H) X 334.2mm (D)
  • Weight: 19.5kgs
