TOA H-3WP EX Wide-Dispersion Coaxial Interior Design Wall Speaker, Weather-Resistant

THE H-3WP WIDE-DISPERSION WALL-MOUNT SPEAKER is part of the TOA Interior Design Series and continues TOA's modern, innovative approach to commercial speaker design. The H-3WP's unique appearance and superb sound quality provide a welcome alternative to conventional wall-mount speakers for spaces where appearance is a prime consideration.

Applications include speaker systems for hotels, houses of worship, offices, museums, residential spaces, restaurants, retail stores, and many others. The H-3WP is a weather-resistant version, available for outdoor applications such as gardens, patios and swimming pools.

The H-3WP's wide 140 degree horizontal coverage pattern provides a solution for eliminating dead spots inherent between wall-mounted speakers. Also, the Minimum Reflection design significantly reduces sound wave reflections and the resulting sound coloration that occurs with conventional bracket-mounted "box" type speakers.

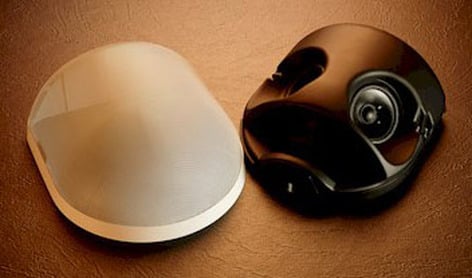

The H-3WP is a two-way, sealed enclosure with high quality components including a 1” dome tweeter, dual 4" woofers, matching transformer, and removable terminal block. The grille is paintable for custom-matching to the room decor.

* Note: For outdoor installation, it is recommended that they are installed under roofs, eaves, or in other locations not directly exposed to rain or snow.

Includes:

• Front grille x1
• Base frame x1
• Electrical box mounting screw - 1 set

Features:

• Unique Appearance: blends well with modern architecture for background/ foreground music and paging systems.
• Wide Variety of Applications: including hotels, houses of worship, museums, offices, residential spaces, restaurants, and retail stores.
• Wide Coverage Area: 140° horizontal x 70° vertical dispersion
• Weather-Resistant Version for outdoor applications such as gardens, patios and swimming pools.
• Minimum Reflection Design: reduces sound wave reflections typical of conventional bracket-mounted "box" type speakers.
• High Power Handling: 150W (Continuous Program)
• Two-Way, Sealed Enclosure with High-Quality Components: 1" Dome Tweeter and Dual 4” Woofers with Neodymium Magnets
• Built-In 70.7 / 100V Matching Transformer (30W max.) for distributed speaker systems (8 and 16Ω taps also available).
• Protection Circuit prevents loudspeaker damage from excessive input.
• Built-In Crossover with optimized filter slopes.
• UL-Listed Fire-Resistant Material
• Removable Terminal Block with loop-through terminations for distributed speaker systems.
• Paint-able Grille to custom-match to the environment.
• Five-Year Warranty

Specifications:

• Enclosure: Sealed type
• Power Handling Capacity:
• 150W (Continuous program / 8Ω)
• 50W (Continuous pink noise / 8Ω)
• Rated Input: 30W (16Ω, high impedance)
• Rated Impedance: 8Ω, 16Ω
• 100 V line:
  • 330Ω (30W)
  • 670Ω (15W)
  • 1.3kΩ (7.5W)
• 70 V line:
  • 170Ω (30W)
  • 330Ω (15W)
  • 670Ω (7.5W)
  • 1.3kΩ (3.75W)
• Sensitivity: 89dB (1W @ 1m) at installation in 1/2 free sound field (Measured by installing the unit in the center of a wall.)
• Frequency Response: 100Hz - 20kHz (-10dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a wall.)
• Crossover Frequency: 4 kHz
• Water Protection: IPX4
• Speaker Component
  • Low frequency: 10cm cone-type × 2
  • High frequency: 2.5 cm dome-type (neodymium magnet)
• Input Terminal: Detachable screw terminal, (+) / (-) 2 each (for bridging connection)
• Usable Cable: Solid cable, stranded cable: 0.2 - 2.5m㎡ (AWG No.24 - 14)
• Finish:
  • Enclosure: Fire-resistant ABS resin, black
  • Front frame: Fire-resistant ABS resin, off-white, paint
  • Punched net: Steel plate (zinc plating), off-white, powder coating
  • Base frame: Stainless steel
• Dimensions: 295 (W) × 318 (H) × 129mm (D)
• Weight: 3.3kgs
• Usable Electrical Box: 2-gang type
