Kramer VP-200K
Amp Dist 1"2 XGA DA w/KR-ISP

OUR PART #:  VP200K

The VP-200K is a distribution amplifier for computer graphics signals up to and excedding UXGA.
Learn More
Our Price: $124.00
List Price: $155.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

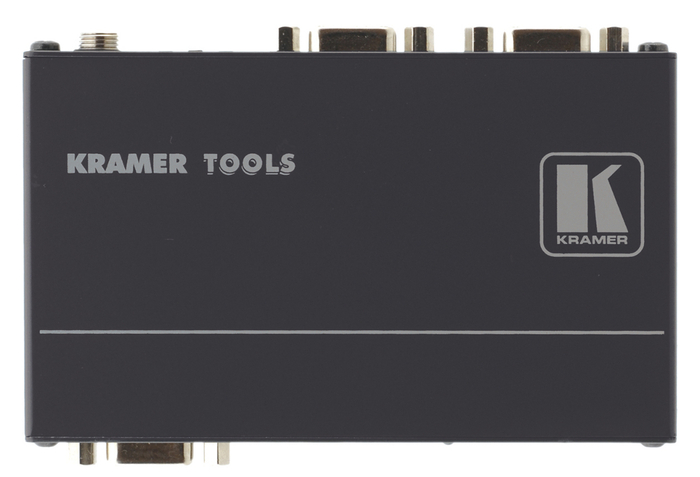

Kramer VP-200K
Qty:
In Stock

Similar Products

The VP-200K is a distribution amplifier for computer graphics signals up to and excedding UXGA. The unit takes one input, provides correct buffering and isolation, and distributes the signal to two indentical outputs.

Features:

  • High Bandwidth - 400MHz (-3dB)
  • HDTV Compatible
  • ID Bit Control
  • Kr-isp Advanced Sync Processing - Ensures compatibility with a wide rangeof computers (even if the sync level is too low) by restoring the sync signalwaveform. Can be enabled or disabled.
  • EDID Support - The EDID data is passed to the source from the displayconnected to output 1
  • Selectable Sync Input Impedance - 75 ohms (video), 510 ohms (Graphics/TTL)
  • DC Coupling
  • 3ft 15-pin HD Cable Included
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1Urack space with the optional RK3T rack adapter

Specifications

  • Input: 1 UXGA on a 15-pin HD connector
  • Outputs: 2 UXGA on 15-pin HD connectors
  • Max. Output Level: 2.2Vpp.
  • Bandwidth (-3dB): 400MHz
  • Diff. Gain: 0.03%
  • Diff. Phase: 0.03Deg.
  • K-Factor: <0.05%
  • S/N Ratio: 72dB @ 5MHz
  • Controls: ID BIT switch; analog/TTL switches for setting the sync
  • Coupling: DC
  • Power Source: 5V DC, 130mA
  • Dimensions: 4.76" x 2.83" x 0.95" (W D H)
  • Included Accessories: Power supply, mounting brackets
