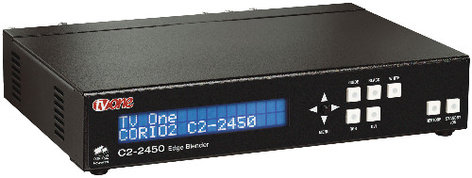

TV One C2-2450A
Edge Blender

OUR PART #  C2-2450A

Our Price: $1,995.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The TV One C2-2450A Edge Blender is based on TV One’s exclusive CORIO®2 technology and enables easy Edge Blending using 2 or more units. DVI and RGB inputs and outputs at virtually any resolution and refresh rate are supported. All settings are stored in non-volatile memory and are retained even when power is switched off. Ten user defined presets are also available to customize settings for various applications.

All the functions can be controlled via the front panel Push Buttons, Infrared, RS-232 or IP. Windows Control Panel software is provided and most third party control systems interface directly with the entire C2 range of products. A front panel LCD makes setup easy. The unit is housed in a desktop case and an optional rackmount kit holds one or two units.

Pixel-accurate scaling is available to support virtually any edge-blend application with images from multiple units aligned vertically, horizontally, or both to create unusual displays. Gamma correction is employed to compensate for many of the problems faced when blending projectors. Special preparation of the video in advance is not necessary, since all processing is done within the unit.

TV One C2-2450A Features:

  • Inputs: DVI-D and Analog RGB/YPbPr
  • Outputs: DVI-I and Analog RGB/YPbPr
  • Analog: PC to 2048x2048, HDTV to 1080p/60
  • DVI: PC to 1920x1200, HDTV to 1080p/60
  • Temporal Interpolation & Diagonal Interpolation
  • Automatic Incoming Resolution Detection
  • Black and White test outputs.
  • 4:4:4 Full bandwidth Sampling
  • Video signal parameter adjustments
  • RS-232 and IP Interface & Windows Control Panel
  • Variable Image Zoom to 10X and Shrink to 10%
  • Optional IR Remote Control Unit
  • Optional Single/Dual Rackmount Kit
Stereo Switcher 5x1 DVI-D TV One S2-105DVIA Stereo Switcher 5x1 DVI-D

S2-105DVIA Switcher may be connected to any of the C2-2000 series Switcher/Down Converters to provide 5 additional DVI-D Video inputs plus 5 stereo audio inputs.The product connects to the C2 unit’s rear panel OPTION Connector via an ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$750.00

Rackmount Frame C21000/2000 S2TV One RM-220 Rackmount Frame C21000/2000 S2

Single/Dual rackmount frame for C2-1000, C2-2000 and S2 series products.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$60.00

TV One C2-2450A
Edge Blender

OUR PART #  C2-2450A

Product Information:

The TV One C2-2450A Edge Blender is based on TV One’s exclusive CORIO®2 technology and enables easy Edge Blending using 2 or more units. DVI and RGB inputs and outputs at virtually any resolution and refresh rate are supported. All settings are stored in non-volatile memory and are retained even when power is switched off. Ten user defined presets are also available to customize settings for various applications.

All the functions can be controlled via the front panel Push Buttons, Infrared, RS-232 or IP. Windows Control Panel software is provided and most third party control systems interface directly with the entire C2 range of products. A front panel LCD makes setup easy. The unit is housed in a desktop case and an optional rackmount kit holds one or two units.

Pixel-accurate scaling is available to support virtually any edge-blend application with images from multiple units aligned vertically, horizontally, or both to create unusual displays. Gamma correction is employed to compensate for many of the problems faced when blending projectors. Special preparation of the video in advance is not necessary, since all processing is done within the unit.

TV One C2-2450A Features:

  • Inputs: DVI-D and Analog RGB/YPbPr
  • Outputs: DVI-I and Analog RGB/YPbPr
  • Analog: PC to 2048x2048, HDTV to 1080p/60
  • DVI: PC to 1920x1200, HDTV to 1080p/60
  • Temporal Interpolation & Diagonal Interpolation
  • Automatic Incoming Resolution Detection
  • Black and White test outputs.
  • 4:4:4 Full bandwidth Sampling
  • Video signal parameter adjustments
  • RS-232 and IP Interface & Windows Control Panel
  • Variable Image Zoom to 10X and Shrink to 10%
  • Optional IR Remote Control Unit
  • Optional Single/Dual Rackmount Kit
