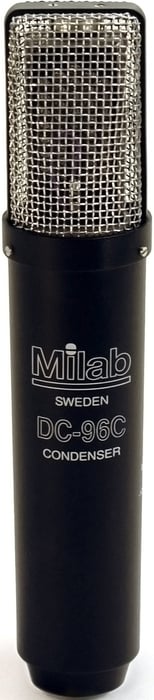

Milab DC-96C
Large Membrane Side-Address Condenser Microphone

OUR PART #:  DC-96C

Milab's DC-96C is a side-addressed large membrane microphone, designed mainly for studio work, but also suitable for many live applications.
Learn More
Our Price: $1,259.00
List Price: $1,399.00
You save 10%!
Write the first review.
Milab DC-96C
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Milab's DC-96C is a side-addressed large membrane microphone, designed mainly for studio work, but also suitable for many live applications.

The original DC-96 was released in 1967 and has become a classic Milab model.  The DC-96C has been updated with the latest technology and shares most of its components, including the capsule, with the DC-196, but it is cardioid only and has a single layer mesh grid, just like the DC-96B.

The DC-96C is suitable for a wide range of applications, including studio vocals, acoustic guitar and piano, hi-hats and overheads, guitar amps and more.

Features:

  • Transformerless
  • Rectangular large dual membrane capsule
  • 12 dB attenuation pad
  • Shock absorbing rubber fitted capsule
  • Gold-plated XLR connector

Specifications:

  • Article number: 1138
  • Frequency response: 20 Hz - 20 kHz
  • Polar pattern: Cardioid
  • Pre-attenuation pad: -12 dB (switchable)
  • Max. SPL (1% THD at 1 kHz): 132 dB
  • Max. SPL with 12 dB pad: 144 dB
  • Sensitivity at 1 kHz: 21,5 mV/Pa (┬▒ 1dB)
  • A-weighted noise level (IEC 179-A): 12 dB
  • Power supply: 48 ┬▒ 4 V Phantom (DIN/IEC)
  • Current consumption: 4,2 mA
  • Output impedance: <200 Ohms
  • Minimum load impedance: 1 kOhm
  • Net weight: 220 g
  • Length: 145 mm
  • Diameter: 27 mm

Click to download
