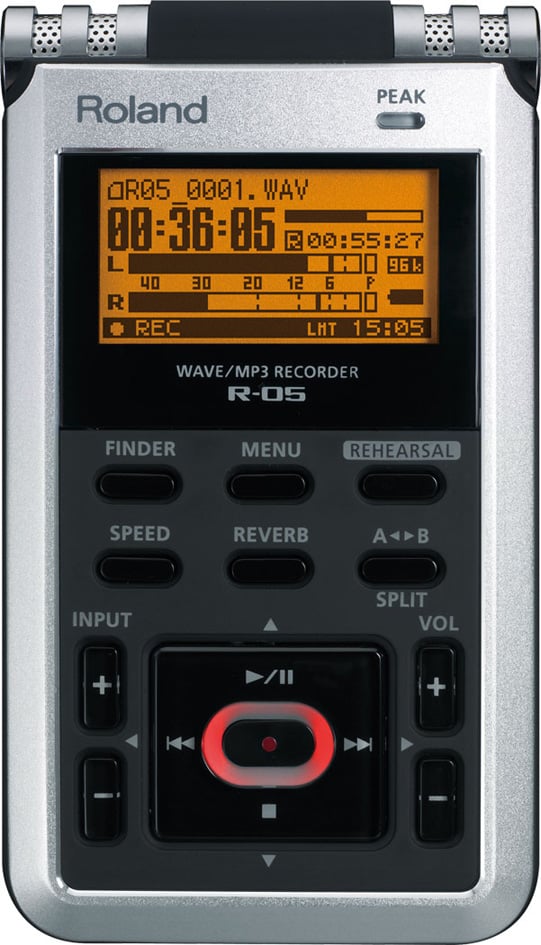

Roland R-05
Handheld 2-Channel WAV/MP3 Recorder

OUR PART #:  R05

Roland's R-05 is easy to use and is packed with features including clear 24-bit/96 kHz capture, enhanced recording and editing features...
Learn More
Roland R-05 - Bottom View
Roland R-05 - Top View
Roland R-05 - Right Side View

Click a thumbnail to see more images. (6 total)

Our Price: $199.99
List Price: $299.00
You save 33%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Roland R-05
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Roland's R-05 is easy to use and is packed with features including clear 24-bit/96 kHz capture, enhanced recording and editing features, and extended battery life (over 16 hours per charge).  On stage, in rehearsal, at school, on the street, in the boardroom — the R-05 captures the moment with convenience and quality.

24/96 Recording
The R-05 provides uncompressed stereo recording directly to SD card — up to 24-bit/96kHz resolution.  Whetherrecording directly with the built-in stereo mic or capturing sounds from an externally connected microphone or stereo line input, you'll like the R-05's detail and clarity.  And for worry-free recording, the convenient Rehearsal mode ensures that you won't overload the input.

Onboard Editing
Even though the R-05 integrates fluidly with computers via USB 2.0, this recorder doesn't require a PC for editing.  For speed and convenience, you can trim, divide, and combine within the R-05.  The R-05 also comes equipped with built-in reverb.

Rehearsal Mode
In a rehearsal studio, you can make clear recordings of your band, even at high volume levels.  The R-05 can automatically set the optimum recording level, and can split the songs for you automatically.  It's also possible to simultaneously record a high-quality WAV file for CD production and an MP3 file for file sharing.

Music-Practice Partner
The R-05 can help you practice your instrument or vocals.  You can repeatedly loop a specified region of audio, or change the playback speed without changing the pitch.  You can play back a difficult phrase slowly or play back at high speed to grasp the overall structure of a song in a short time.

For Non-Musicians Too
Musicians will naturally gravitate to the R-05, but this portable recorder is great for many non-musical applications as well.  Record lectures, speeches, and meetings, for example.  The high-sensitivity, built-in microphone will clearly capture all of the voices in a room.  The included windscreen and tripod mount enhance optimal placement and cleaner recordings as well.

Roland R-05 Features:

  • High-quality stereo recording (24-bit / 96kHz) with the built-in stereo microphone or external input
  • Records directly to SD card with extended battery life (over 30 hours continuous playback, over 16 hours continuous recording)
  • Strong, attractive metallic exterior
  • Onboard editing functions; built-in reverb
  • Music-practice features (change tempo without changing pitch, loop playback, etc.)
  • Auto record start, auto song split, auto level adjust
  • Pre Record function (captures 2 seconds of audio that precedes pressing REC)
  • Use as a high-quality portable audio player (plays WAV and MP3 files)
  • Windscreen and tripod mount included
  • External power supply (PSB-6U-120) issoldseparately .

Roland R-05 Specifications:

  • Recorder:
    • Tracks: 2 (stereo one pair)
    • Signal Processing: AD/DA conversion: 24 bits, 44.1/48/88.2/96 kHz
    • Data Type (Recording):
      • WAVE (Sampling Rate: 44.1/48/88.2/96 kHz, BitDepth: 16/24 bits)
      • MP3 (Sampling Rate: 44.1/48 kHz, Bit Rates:64/96/128/160/192/224/320 kbps)
      • WAVE + MP3 (Sampling Rate: 44.1/48kHz, Bit Depth: 16 bits, Bit Rates: 128 kbps)
      • *MP3 ... MPEG-1 Audio Layer 3
    • Data Type (Playback):
      • WAVE (Sampling Rate: 32/44.1/48/88.2/96 kHz,Bit Depth: 16/24 bits)
      • MP3 (Sampling Rate: 32/44.1/48 kHz, Bit Rates: 32- 320 kbps or VBR)
      • *MP3 ... MPEG-1 Audio Layer 3, VBR ... Variable Bit Rate
    • Memory Card: SD Card, SDHC format compatible
    • Recording Time*:
      • WAV (24-bit/96 kHz): 27 mins/GB
      • WAV(24-bit/88.2 kHz): 30 mins/GB
      • WAV (24-bit/48 kHz): 54 mins/GB
      • WAV(24-bit/44.1 kHz): 59 mins/GB
      • WAV (16-bit/96 kHz): 40 mins/GB
      • WAV(16-bit/88.2 kHz): 44 mins/GB
      • WAV (16-bit/48 kHz): 81 mins/GB
      • WAV(16-bit/44.1 kHz): 88 mins/GB
      • MP3 (320 kbps): 392 mins/GB
      • MP3 (128kbps): 980 mins/GB
      • Each recording time is approximate. The times may change depending on the card specifications.
      • * In case that there are plural files, the sum of recording time would be shorter than above.
  • Input/Output:
    • Audio Inputs: Internal Stereo Microphone, Mic input (Stereo miniaturephone type, plug-in powered mic), Line input (Stereo miniature phonetype)
      • *The Internal/External Mic and the Line input can't be used at the same time (Line input priority).
    • Audio Output: Phones (Stereo miniature phone type)
    • Nominal Input Level (Variable):
      • Mic input: -33 dBu (MIC GAIN isH, Default input level)
      • Mic input: -15 dBu (MIC GAIN is L, Defaultinput level)
      • Line input: -7 dBu (Default input level)
      • * 0 dBu = 0.775 Vrms
      • Input Impedance:
        • Mic input (MIC GAIN is H): 7k ohms
        • Mic input(MIC GAIN is L): 5k ohms
        • Line input: 8 k ohms
      • Output Level: 20 mW + 20 mW (In case 16 ohms load)
      • Recommended Load Impedance: 16 ohms or greater
      • Frequency Response: 20 Hz to 40 kHz
      • USB Interface: Mini-B type connector (support USB 2.0/1.1 massstorage device class)
    • Effects:
      • Reverb: 4 types (Hall1, Hall2, Room, Plate)
      • Speed change: 50 - 150 % of playback speed
        • * Playback only. Excludesplayback in 88.2 kHz or 96 kHz.
        • * Reverb and Speed Change can't be used atthe same time.
    • Others:
      • Display: 128 x 64 dot graphic display
      • Power Supply:
        • AC Adaptor
        • Alkaline dry battery LR6 (AA) type x 2or Nickel Hydrogen battery (HR15/51) x 2
      • Current Draw: 290 mA (maximum)
      • Duration of continuous use with Alkaline batteryoperation:
        • Playback: over 30 hours
        • Recording: over 16hours
        • * These figures will vary depending on the actual conditions of use.
      • Accessories: Owner's manual, Quick start guide, SD card, Batteries (two AA), USB cable (mini-B type), Windscreen
      • Dimensions: 2-3/8" W x 4-1/16" D x 1" H (60 x 103 x 25 mm)
      • Weight: 0 lbs, 5 oz. (140 g)
