ETA Systems ETA-ECS6RM
Electrical Control Sequencer

OUR PART #:  ETA-ECS6RM

The ETA-ECS6RM is a multi-stage sequencing unit that is also rack mountable and fits in a standard 19" wide rack.
Learn More
Our Price: $461.50
List Price: $575.95
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETA Systems ETA-ECS6RM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ETA-ECS6RM is a multi-stage sequencing unit that is also rack mountable and fits in a standard 19" wide rack. The ETA-ECS6RM is a modular system that offers six sequential timing sections that can be activated via the unit or remotely. The ETA-ECS6RM is designed to work with the new ETA remote AC module, the ETA-ECM20 to meet most installation requirements. These units are 20A power conditioners that offer AC mains voltage monitoring and spike/surge suppression as well as abnormal voltage monitoring when used with the ETA-ECS6RM.

Features

  • 6 Sequencer Timing sections; 1, 3, or 6 second intervals
  • 6 Independent ECM Connections
  • 6 Independent Contact Closures
  • Front panel digital AC Mains Voltage and Current meter
  • Front & rear mounted XLR connector for 12VDC gooseneck LED lamp
  • Qty 1 Atlas Power AP-GNL18 LED gooseneck lamp included
  • External switch sequence trigger activation
  • External DCV sequence trigger activation 5-24VDC
  • Abnormal AC line voltage indicator for voltages between 101VAC-107VAC or 128VAC-132VAC
  • Extreme Voltage Shutdown (EVS) below 101VAC or above 132VAC line

The ETA-ECS6RM was designed to be flexible with features that allow it to be used in a variety of applications. The sequenced outputs allow the tuning of equipment On and Off in a particular order, to eliminate an in-rush of current and audible pops that often occur with non-sequenced power strips. It also can be used solely for protection against voltage surges. If fuzzy video or frequent static pops occur, the AC power conditioning will eliminate or reduce those inconveniences. The following are just a few examples of applications in which the ETA-ECS6RM can be used:

  • Restaurants
  • Houses of Worship
  • Schools
  • Home Theaters
  • Office Buildings
  • Sports Bars
  • Industrial Facilities

Specifications

  • Type: Power Sequencer Controller
  • Sequencer Sections: 6
  • Relay Sections: 6
  • Sequence Timing: Unit Settings of 1, 3 or 6 seconds
  • Unit Link: 3
  • Power Supply: External Wide Range 100V-240VAC, UL
  • Power Consumption: .8W
  • RoHS Compliant: Yes
  • Dimensions (H x W x D): 1.75" x 19" x 10"
  • Weight: 7 lbs

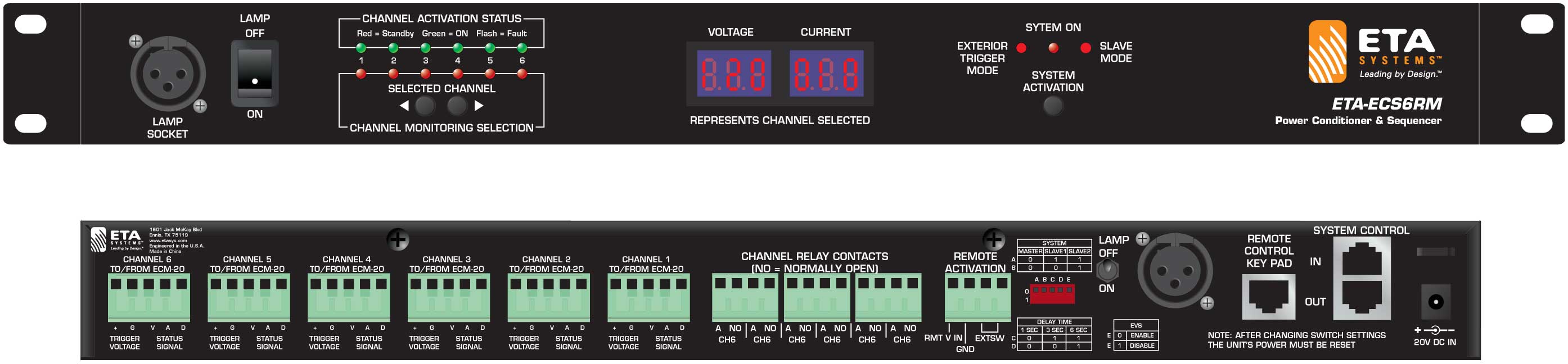

Front Panel

  • Lights: XLR socket to provide 12VDC for optional 16" Atlas Power Gooseneck Lamp, AP-GNL18 (Qty 1 included)
  • LED Light Switch: Two position on/off
  • Activation Switch: Momentary
  • AC Mains Voltmeter: Three digits digital
  • AC Mains Current Meter: Three digits digital
  • Indicators: System on, external trigger mode, slave mode
  • Channel Selection: Momentary switches
  • Channel Selected Indicator: Single LED per channel, total six LEDs
  • Activation Indicators: Six Bi-Color LEDs, one for each channel

Rear Panel

  • Sequenced Activation/Status Signal Port: Six channels interconnect port. Trigger out and status signal return, Euro/Phoenix type connector
  • Remote Activation Trigger: 5-24VDC continuous 10mA, switch contacts, Euro/Phoenix type connector
  • Sequenced Relay Contacts: Six channels, single relay contact SPST each channel. Euro/Phoenix type connector
  • Sequence Time Selection: Settings 1,3,6 seconds, dip switch select
  • System Master/Slave Assignment:
    Master
    Slave Unit 1
    Slave Unit 2
    Dip Switch Select
  • EVS Bypass: Extreme Voltage Shut Off Enable/Disable, dip switch assign
  • LED Light Socket: XLR socket to provide 12VDC for optional 16" gooseneck lamp, AP-GNL18
  • LED Light Switch: Two position on/off
  • DC Input Jack: External Power Supply, wide range 100V-240VAC, 20V DCV, UL listed
