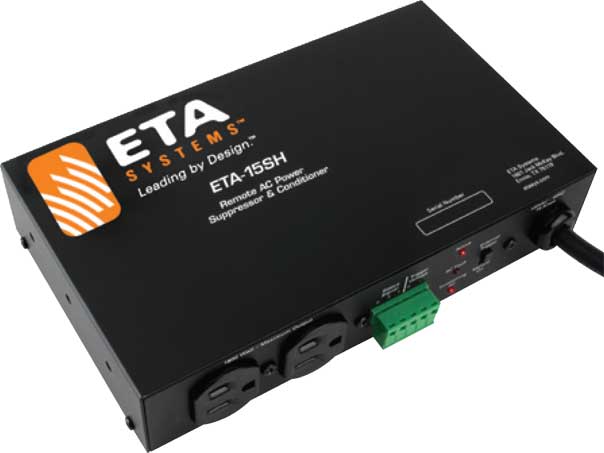

ETA Systems ETA-15SH
AC Power Conditioning & Suppression Module, 2 Outlets, 15A


The ETA-15SH is a single housing unit for 15A lines.
Learn More
Our Price: $160.50
List Price: $198.95
You save 19%!
Write the first review.
ETA Systems ETA-15SH
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The ETA-15SH is a single housing unit for 15A lines. Features 2 outlets that support AC spike and surge suppression, AC mains voltage monitoring, EVS circuitry, and remote activation. It also supports current monitoring and EMI/RFI filtering for applications where they are used individually.


  • 2 Outlets, 15A
  • RFI/EMI noise filtering
  • Spike & Surge suppression, DCS circuitry
  • Extreme Voltage Shutdown (EVS) below 101V or above 132V AC line
  • AC Fault indicator
  • Fuse protection @ 15A slow blow
  • Manual bypass switch
  • Incoming AC presence LED
  • Active outlet LED
  • Status signals output for voltage and current
  • Compact to fit behind flat screens

The ETA-15SH is designed to be flexible for use in a variety of applications. When used with a sequenced controller it allows the turning of equipment on and off from a remote location to save energy and to reduce an in-rush of current that stresses the main AC line. It also can be used as a standalone unit for protection against voltage surges and applies EMI/RFI filtering to clean up the AC power at the load source. The following are just a few examples of applications in which the ETA-15SH can be used:

  • Restaurants
  • Houses of Worship
  • Schools
  • Home Theaters
  • Office Buildings
  • Sports Bars
  • Industrial Facilities


  • Type: AC Power Conditioner & Suppressor Module
  • Power Requirements: 120V 60Hz
  • Power Consumption: .5W
  • RoHS Compliant: Yes
  • Switched Outlets: Two, 15A
  • Spike & Surge Suppression: H-N, N-G, H-G
  • Manual Override: Slide switch
  • Extreme Voltage Shutdown (EVS): Below 101V or Above 132V AC line (when used with ETA-ECS6RM)
  • Connectors: 5 position Phoenix Euro Block Style
  • Fuse Protection: 15A slow blow
  • DCV Remote Trigger: 5-24DCV
  • Remote Tribber: SPST Contact
  • Status Signals: Output for voltage and Current Data (all signals are low voltage and low current)
  • Indicators: Incoming AC, Active, AC Fault
  • Power Cord: 9', 14-gauge
  • Current Rating: 15 amps
  • Operating Voltage: 102 to 132 VAC
  • High Voltage Surge Protection: Trigger at 133VAC, 1ms typically (when used with ETA-ECS6RM)
  • Spike & Surge Suppression: H-N, N-G, H-G
  • Low Voltage Protection: Trigger 101 VAC, 1ms Typically (when used with ETA-ECS6RM)
  • Spike Protection Modes: Circuitry on incoming AC mains
  • Minimum Spike Clamping Voltage: 460 VRMS @ 3,000 amps
  • Maximum Spike Clamping Voltage: 6000V
  • Maximum Spike Clamping Response Time: 1 nanosecond
  • Spike Clamping Voltage @ 100A: 1250Vp for 20µs
  • Maximum Surge Current: 6,500 amps
  • Energy Rating @ 2ms: 600 Joules
  • Noise Attenuation EMI/RFI Sequencer: 10dB @ 10kHz, 40dB @ 100kHz, 100dB @ 10MHz
  • Temperature Range: 5° to 35°C
  • Humidity Range: 5% to 95% R.H.
  • Chassis Finish: Black
  • Mounting: Side bracket adjustable
  • Dimensions (H x D x W): 1.75" x 8.5" x 5.0"
  • Weight: 4.5 lbs
  • Agency Listings: MET (UL1449 Code)
