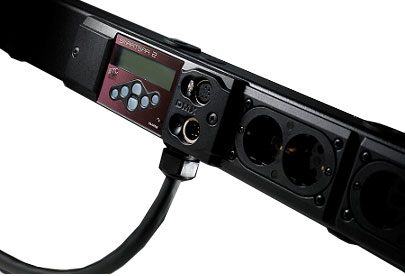

ETC/Elec Theatre Controls SB6-10Y-C
6 Circuit SmartBar 2, 3 Phase Cable In, Twist-Lock Out

OUR PART #:  SB6-10Y-C

Smarter dimming at a Smarter price. SmartBar 2 gives you next-generation dimming for portable or permanent installations - without busting your budget.
Learn More
Our Price: $1,755.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls SB6-10Y-C
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Smarter dimming at a Smarter price. SmartBar 2 gives you next-generation dimming for portable or permanent installations - without busting your budget. It provides an integrated dimming and fixture-mounting solution for compact, low-power applications, such as rentals, industrials or even small touring productions.

Set up your system in minutes and light like a pro - just plug in and play anytime, anywhere. Schools, churches, community theaters and outdoor events will benefit from SmartBar 2's easy setup. No ladder necessary.

SmartBar 2 is fully digital, with operational and programming features similar to SmartPack - presets, sequences (chases), choice of dimmer curves - as well as many new features. And the console is optional thanks to SmartBar 2's chases and local control, but pair it with a SmartFade lighting control console and you have the perfect production combination.

Now available with more power. A SmartBar 2 high-power option is available to handle twice the fixtures on a four-circuit bar.

ETC SB6-10Y-C SmartBar 2 Features:

  • Convection cooled - No fans required
  • Fixture Mount - Integrate fixture suspension points
  • Easy Focus - Integrated nylon bushings
  • FlexiLoad - Up to 1200 Watts max per output
  • Easy Reset - Resetable breaker output protection
  • RDM enabled - DMX512a w/RDM remote addressing
  • "Smart" UI -
  • Graphic level display
  • Quick setup menus
  • Button shortcut for manual control
  • User-selectable dimmer curves
  • 20 chases (preprogrammed sequences)

ETC SB6-10Y-C SmartBar 2 Specifications:

General

  • 2, 4 or 6 dimmer versions available
  • 1200 watt max per channel output
  • UL/cUL listed
  • Installation requires attachment of safety cables, main power via flexiblecable and data via DMX
  • Dimensions (H x W x L): 3" x 2" x 87.3"
  • Weight: 29 lbs net, 34 lbs shipping

Mechanical

  • Manufactured of strong, thick walled aluminum with a black bakedpowder-coat finish
  • Integrated sleeved suspension points for fixtures and for mountinghardware
  • Supplied with 4 1/2" long, 1/2" bolts and appropriate hardware for fixturemounting
  • Convection cooled - operates without cooling fans or filters
  • Sealed enclosure prevents dirt and dust intrusion

Electrical

  • 85-140V phase to neutral 47-63Hz Mains supply
  • Input power feed - 20A max per phase
  • 6 Circuit - Standard with 3 phase 4-Wire Plus ground, 20Afeed
  • 4 and 6 Circuit Bars optionally available with 12-4 SO cable for supportof bi-phase feeds
  • Input Power via an attached flexible 12' SO feed cord and bare-ends(connector not supplied)
  • 2500V isolation between control and power components
  • Total load can not exceed capacity of main power connection (wall outlet,15A, 20A per phase)
  • 75W minimum load per dimmer
  • Edison, Stage Pin or Twist-Lok outlets (1 per circuit)
  • Single duplex auxiliary outlet centered on bar
  • 10A magnetic supplemental circuit breaker for each output

Thermal

  • Maximum ambient temperature of 104°F (40°C)
  • Humidity between 10-95% non-condensing
  • Natural convection cooling
  • Optimum cooling when mounted horizontally

Control Features

  • DMX512 In and Thru via 5-pin XLR connectors
  • Supports up to 32 SmartBar 2s on one DMX line
  • High contrast 2-line by 20-character backlit LCD with graphic channellevel indication
  • 6-button "Smart" style keypad
  • 2 status LED indicators: Power and Valid DMX
  • Soft patch any dimmer to any DMX channel
  • Five selectable dimmer output curves:
    - IES modified square law
    -Linear
    - Switched (50% threshold)
    - Fluorescent with adjustablecut-off
    - Adjustable Pre-Heat
  • Local manual control and 20 chase patterns for stand alone operation
  • Multi-Language capability - English, Spanish, German and French
