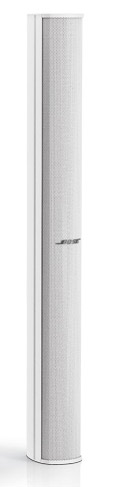

Bose MA12EX-WHITE
Panaray Modular Line Array Speaker

OUR PART #:  MA12EX-WHITE

The Bose® Panaray® MA12EX is a full-range modular line array loudspeaker designed to provide outstanding vocal intelligibility in acoustically demanding spaces.
Learn More

Call for price!

Similar Products

The Bose® Panaray® MA12EX is a full-range modular line array loudspeaker designed to provide outstanding vocal intelligibility in acoustically demanding spaces. The slim column enclosure blends with almost any décor. The "EX" version adds an Articulated Array® design to provide wider 160° horizontal coverage and weather-resistant components to allow outdoor applications.

Articulated Array® speaker configuration provides wider 160° horizontal coverage and weather-resistant components allow use in outdoor applications. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.

For indoor and outdoor applications.

Features:

  • Twelve 2.25" (64 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
  • Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
  • Articulated Array® design provides wide 160° horizontal coverage with 20° nominal vertical coverage for a single module. Actual vertical coverage varies with number of modules in line array configuration
  • Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose MB4, MB12, or MB24 modular bass loudspeakers
  • Optional brackets allow easy installation of single-, double- or triple-stack line array modules

Specifications:

System Performance

  • Frequency Response (+/-3 dB)1 75 Hz - 13 kHz
  • Frequency Range (-10 dB)1 58 Hz - 16 kHz
  • Nominal Dispersion2 160° H x 20° V
  • Recommended High-Pass Filter 65 Hz
  • Loudspeaker EQ Required
  • Overload Protection PTC / Lamp
  • Long-Term Power Handling3 , 4 150 W (600 W peak)
  • Sensitivity (SPL / 1 W @ 1 m)5 87 dB SPL
  • Maximum SPL @ 1 m6 109 dB SPL (115 dB SPL peak)
  • Nominal Impedance 8 Ohms
  • Transformer Taps (70/100 V) CVT-MA12EX transformer available

Transducers

  • Driver Compliment Twelve (12) 2.25" (57 mm) high-excursion,weather-resistant drivers

Physical

  • Enclosure Powder-coated aluminum, black or white
  • Grille Powder-coated aluminum grille
  • Environmental Outdoor per IEC 529 IPX5
  • Connectors Two (2) parallel-wired NL4 Neutrik®Speakon® connectors
  • Two (2) two-conductor barrier strips
  • Suspension / Mounting Six (6) x M6 threaded inserts(back)
  • Dimensions 38.8" H x 4.1" W x 5.5" D (985 mm x 104 mmx 139 mm)
  • Net Weight 21 lb (9.4 kg)
  • Shipping Weight 23 lb (10.4 kg)
0â10° Pitch Adustable Wall Bracket for Panaray MA12 , MA12EX Loudspeakers in White
Bose WB-MA12/MA12EX 0–10° Pitch Adustable Wall Bracket for Panaray MA12 , MA12EX Loudspeakers in White
The Bose WB-MA12/MA12EX is a wall bracket that offers 0 – 10° of pitch adjustment for their Panaray MA12 and MA12EX loudspeakers.  For indoor and outdoor use.
