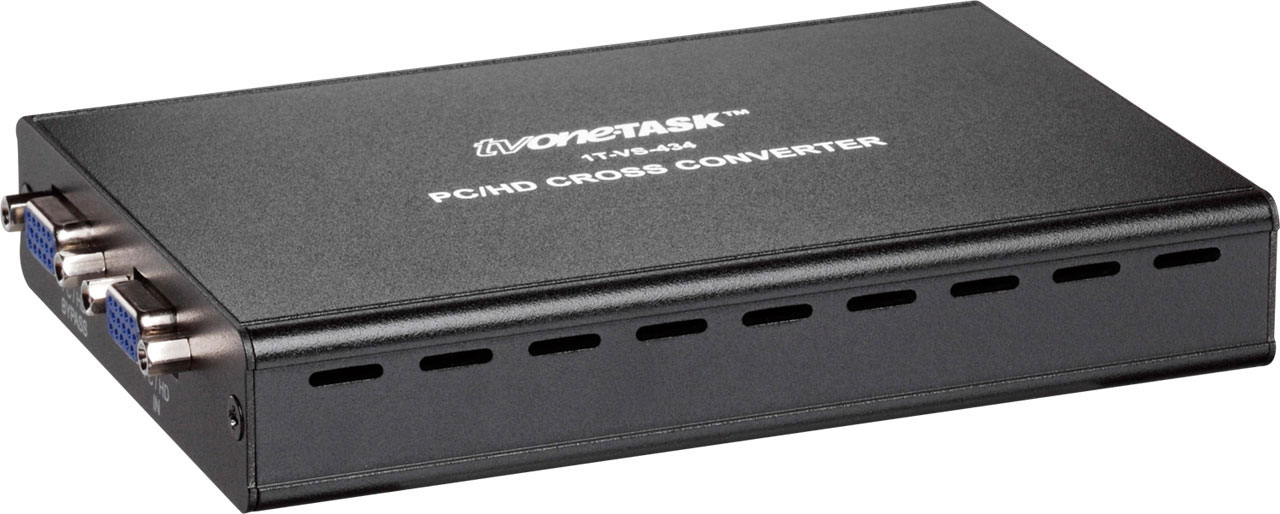

AV Tool 1T-VS-434 PC/HD-PC/HD Cross Converter

1T-VS-434 PC/HD Cross Converter

1T-VS-434 PC/HD Cross Converter is a Cross Format Scaler for PC and HD formats and resolutions. The input resolution is automatically detected and can either be RGBHV or YPbPr format. Output Resolutions up to 1920x1200 and 1080p are accommodated. In addition to converting between PC and HD, the unit can take a 480i Component Video signal (from a DVD Player for example) and convert it to PC or HD resolutions. The output resolution and refresh rate is selected via push buttons on an On Screen Display. The integral processor provides control over many signal parameters, such as: Contrast, Brightness, Color Saturation, Sharpness, R-G-B Levels and Aspect Ratio.

The unit is 5VDC powered and the included Power Adapter features a locking DC Connector for security

Key Features of the 1T-VS-434

• Ultra Compact, High Performance Unit
• Cross Convert between PC and HD resolutions
• PC Output Resolutions up to 1920x1200
• HD Output Resolutions up to 1080p
• Locking DC Power Connector for Security
