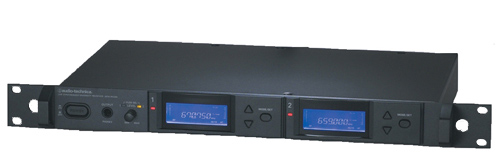

Audio-Technica AEW-R5200C
Dual Channel UHF True Diversity Receiver, Frequency Agile, 541.500 MHz to 566.375 MHz

OUR PART #:  AEW-R5200C

Designed for use on professional tours, in stadiums, concert halls...
Learn More
Our Price: $2,239.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio-Technica AEW-R5200C
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Designed for use on professional tours, in stadiums, concert halls, houses of worship and other demanding audio environments, Audio-Technica’s dual-receiver Artist Elite® 5000 Series provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.

With two independent True Diversity receivers in a single full-rack housing, the 5000 Series conserves rack space while providing outstandingly reliable and flexible performance. Two hundred selectable channels are offered in each of two available UHF bands. Receivers may be linked to form a complete system in which the built-in IntelliScan capability automatically determines and sets the best available frequencies on all linked receivers. Equipped with Ethernet ports, the 5000 Series receiver allows computer management and control (software included).

Multiple system configurations are available, with handheld vocal microphone/transmitters and UniPak™ body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars.

AEW-R5200C Dual Receiver Specifications

  • Receiving System: Dual independent RF sections,automatic-switching diversity
  • Image Rejection: 60 dB typical
  • Signal-to-Noise Ratio: 115 dB at 40 kHz deviation(IEC-weighted, 75 kHz maximum modulation)
  • Total Harmonic Distortion: </=1% (10kHz deviationat 1kHz)
  • Sensitivity: 20 dBµV (S/N 70 dB at 5kHz deviation,IEC-weighted)
  • Intermediate Frequency: 65.75 MHz, 10.7 MHz
  • Audio Output - Microphone: 25 mV (at 1 kHz, ±5 kHzdeviation, 10k ohm load), transformer isolated and balanced (ATTN switch at"0")
  • Audio Output - Instrument: 50 mV (at 1 kHz, ±5 kHzdeviation, 10k ohm load), transformer isolated and balanced (ATTN switch at"0")
  • Audio Output Attenuator: Three-position switch: 0 /-6 / -12 dB
  • Output Connectors (Microphone): XLRM-type, balanced
  • Output Connectors (Instrument): 1/4" TRS balancedphone jack
  • Headphone Output: Connector: 1/4" (6.3 mm) TRS("stereo") phone jack; Power Output: 10 mW + 10 mW into 32 ohms (at 1 kHz, ±5kHz deviation); maximum output: 220 mW + 220 mW into 32 ohms; Headphonesswitchable between Channel 1 and Channel 2
  • External Mute: 1/4" TS unbalanced phone jack, eachchannel
  • Antenna Power: DC 10V-12V, 20 mA (BNC-type jack)
  • Computer Interface: Type: Ethernet, 10BaseT mode;Connector: RJ-45; Proprietary Software: supplied on CD-ROM
  • Power Supply: 100-240V AC 50/60 Hz, 15W
  • Pass-Through AC Power Outlet: 100-240V AC 50/60 Hz,5A maximum
  • Dimensions (W x H x D): 18.98" x 1.74" x 10.85"
  • Net Weight: 8.8 lbs (without accessories)
  • Accessories Included: Detachable IEC-type AC power cable; two flexible UHFhalf-wave antennas; link cable; IEC-type AC pass-through cable; front-mountantenna cables and connectors; CD-ROM with computer control interfacesoftware; AEW-TB44 transmitter bag

Overall System Specifications

  • Operating Frequencies: UHF Band C: 541.500 MHz to 566.375 MHz
  • Number of Channels: 200 total per band
  • Frequency Stability: +/-0.005%, Phase Lock Loop frequency control
  • Modulation Mode: FM
  • Normal Deviation: +/-5 kHz
  • Operating Range: 300' typical
  • Frequency Response: 70Hz to 15kHz
