Audio-Technica AEW-4250AC
Wireless Handheld Microphone System, AEW-T5400 Cardioid Condenser Mic, Band C: 541.500 to 566.375 MHz

OUR PART #:  AEW-4250AC

Our Price: $1,349.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio-Technica AEW-4250AC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

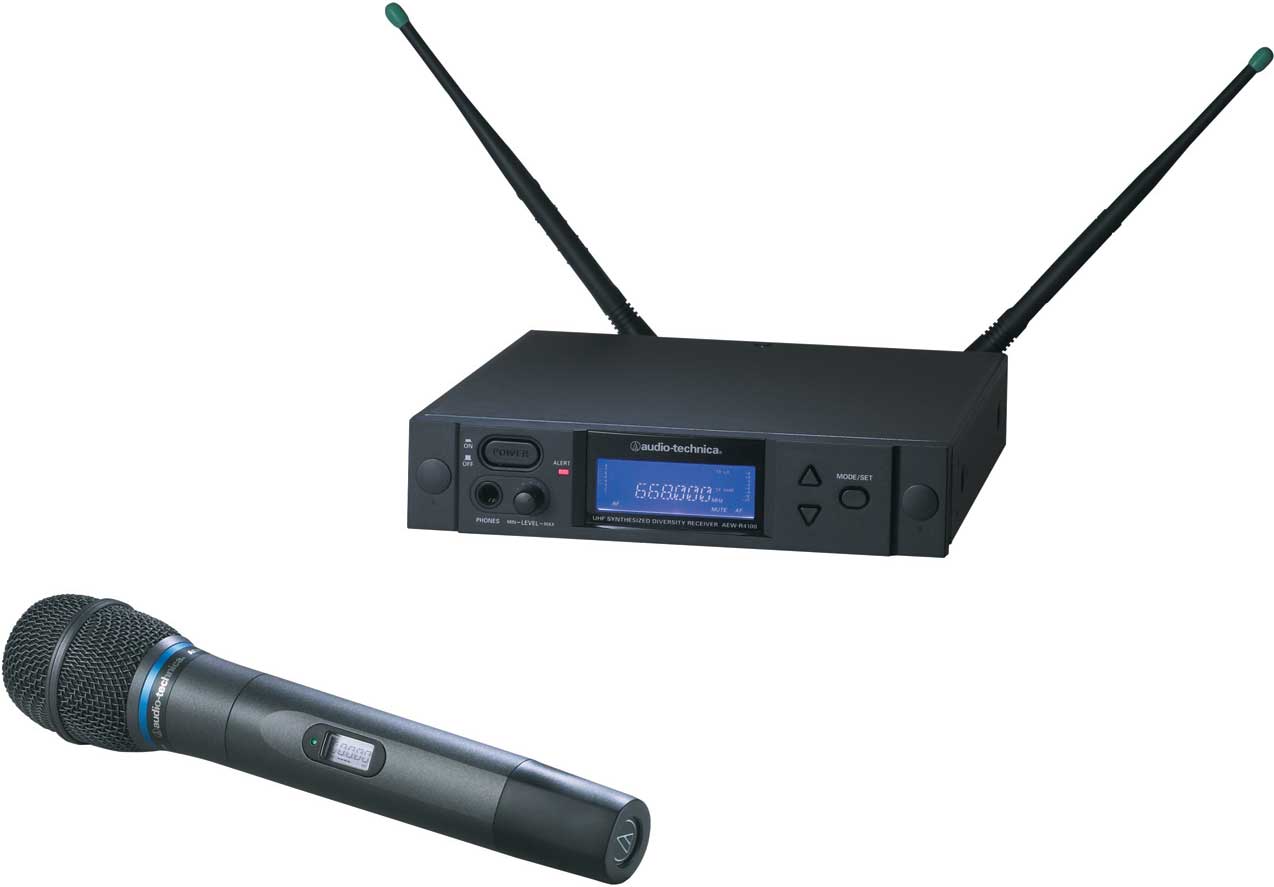

Includes:

  • AEW-R4100 Receiver
  • AEW-T5400a Cardioid Condenser Handheld Transmitter

Audio-Technica's upgraded 4000 Series frequency-agile UHF body-pack and handheld wireless systems bring outstanding clarity and versatility to live performance, regional touring, fixed installations and more. At the heart of the 4000 Series is a rugged True Diversity half-rack receiver, the AEW-R4100, with 996 selectable channels offered in each of two available UHF bands.

Receivers from both the 4000 and 5000 Series may be linked; they may be monitored by the 5000 Series system software. The included IntelliScan feature automatically determines and sets the best available frequencies on all linked receivers.

Multiple system configurations are available, with handheld vocal micorphone/transmitters and UniPak body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars.

Features

  • 996 selectable UHF channels per band and True Diversity reception for interference-resistant operation
  • Available in two frequency bands:
    541.500 - 566.375 MHz (TV Channels 25-30)
    655.500 - 680.375 MHz (TV Channels 44-49)
  • IntelliScan feature automatically finds and sets best available frequencies on all linked receivers
  • Advanced digital Tone Lock squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
  • Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality
  • Link and coordinate multiple receiver channels
  • High-visibility white-on-blue LCD information display
  • Metal half-rack receiver chassis with mounting hardware
  • All transmitters offer rugged, ergonomic metal bodies, programmable features, soft-touch controls, and 10 mW/35 mW switchable RF power
  • Backlit LCD displays on transmitter
  • All components store up to five preset configurations, with customized "names" if desired

Overall System Specifications

  • Operating Frequencies: UHF Band C: 541.500 to 566.375 MHz (996 frequencies)
  • Frequency Stability: +/-0.005%, Phase Lock Loop frequency control
  • Minimum Frequency Step: 25kHz
  • Modulation Mode: FM
  • Normal Deviation: +/-5kHz
  • Operating Range: 300' typical
  • Operating Temperature Range: 41° F to 113° F
  • Frequency Response: 70Hz to 15kHz

Receiver Specifications

  • Receiving System: Dual independent RF sections, automatic-switching diversity
  • Image Rejection: 60dB typical
  • Signal-to-noise Ratio: 115dB at 40kHz deviation (IEC-weighted, 75kHz maximum modulation)
  • Total Harmonic Distortion: <=1% (10kHz deviation at 1kHz)
  • Sensitivity: 20dBµV (S/N 70dB at 5kHz deviation, IEC-weighted)
  • Intermediate Frequency: 65.75 MHz, 10.7 MHz
  • Audio Output - Microphone (ATTN switch at "0"): 25 mV (at 1kHz, +/-5kHz deviation, 10k ohm load)
  • Audio Output - Instrument (ATTN switch at "0"): 50 mV (at 1kHz, +/-5kHz deviation, 10k ohm load)
  • Audio Output Attenuator (ATTN): Three-position switch: 0/-6/-12 dB
  • Output Connectors (Microphone): XLRM-type (balanced)
  • Output Connectors (Instrument): 1/4" TS unbalanced
  • Headphone Output:
    Connector: 1/4" TRS ("stereo) phone jack
    Power Output: 10 mW + 10 mW at 1kHz, +/-5khz deviation into 32 ohms
    Maximum Output: 220 mW + 220 mW into 32 ohms
  • Antenna Power: DC 10V-12V, 20mA (BNC-type jack)
  • Power Supply: 100-240V AC 50/60 Hz; 8W
  • Dimensions (W x H x D): 8.31" x 1.74" x 9.26"
  • Net Weight: 3.8 lbs
  • Accessories Included: Detachable IEC-type AC power cable; two flexible UHF half-wave antennas; link cable; rack-mount adapters

Handheld Transmitter Specifications

  • RF Power Output:
    High: 35 mW
    Low: 10 mW, nominal
  • Spurious Emissions: Under federal regulations
  • Dynamic Range: >=110 dB, A-weighted
  • Microphone Element: AEW-T5400a: Cardioid Condenser
  • Batteries: Two 1.5V AA alkaline (not included)
  • Current Consumption:
    High: 185 mA
    Low: 165 mA, typical
  • Battery Life: Approx. 6 hours (high); 8 hours (low), depending on battery type and use pattern
  • Dimensions: 9.41" long, 1.97" maximum diameter
  • Net Weight: 10 oz
  • Accessory Included: AT8456a Quiet-Flex stand clamp
