Marshall Electronics AR-AM1
1Ru Rack-Mount Analog Audio Monitor

OUR PART #:  AR-AM1

Marshall Electronics' AR-AM series offers high-quality, low cost, rack-mount, near-field audio monitoring units.
Learn More
Our Price: $411.25
List Price: $484.00
You save 15%!
Write the first review.
Marshall Electronics AR-AM1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Marshall Electronics' AR-AM series offers high-quality, low cost, rack-mount, near-field audio monitoring units.  They feature high fidelity speakers and DSP audio processing, with a variety of configurations.  These new analog audio racks are ideal for TV facilities, studios, post production, VTR bays, mobile production vehicles, satellite links, and wherever audio monitoring is required.

The AR-AM1 is a stereo analog audio monitoring system that features stereo loudspeakers in a compact 1RU form factor, with analog amplification and digital processing.  At only 6.0" deep, the AR-AM1 can be installed in many shallow rack cases or placed on any level surface.  This unit is enhanced with both balanced XLR and unbalanced RCA stereo inputs, along with balanced XLR outputs for interfacing to downstream equipment.  Controls include separate headphone and speaker volume with master balance.  A powerful DSP-controlled EQ (coupled with a limiting compressor) provides superior sound and speaker protection.

Marshall Electronics AR-AM1 Features:

  • Fits 1RU rack space
  • High Fidelity Miniature Speakers

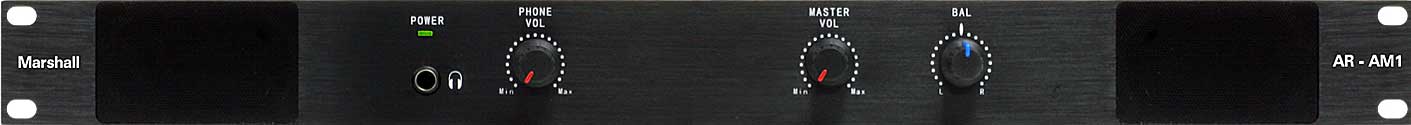

  • Volume and Balance controls
  • High Quality DSP Processing
  • 1 Analog Stereo-Balanced XLR Input
  • 1 Passive Stereo-Balanced XLR Output
  • 1 Stereo Analog Unbalanced RCA Input
  • 1/4" Stereo Headphone Jack on front panel
  • CE approved / RoHS compliant
  • FREE pair of Marshall Master Series 10' XLR Cables included (M10)

Marshall Electronics AR-AM1 Specifications:

  • Speaker Power Output: Left/Right RMS @ 4 Ohms: 3WRMS, 5W Peak
  • Peak Acoustic Output: 99 dB SPL @ .1m
  • Headphone Power Output: 150 mW
  • Power Consumption: 40W
  • Voltage Requirement: 29VDC
  • AC Input: 100V-240V, 1.0A, 50-60Hz
  • DC Output: 29VDC, 1.65A
  • Dimensions (WxHxD): 18.94" x 1.75" x6.0"
  • Weight: 4.55 lbs
