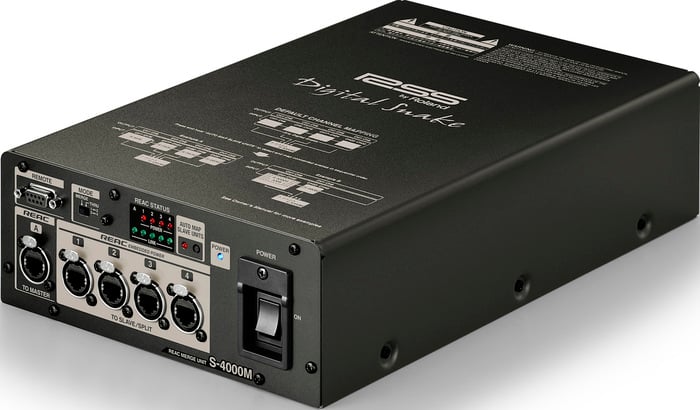

Roland System Group S4000M
REAC Merge Unit (with 4 Digital Snake Heads)

OUR PART #:  S4000M

RSS' S-4000M REAC Merge Unit allows up to four Digital Snake heads to be merged into a REAC stream where the master device recognizes it as single REAC slave unit.
Learn More
Our Price: $1,495.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Roland System Group S4000M
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

RSS' S-4000M REAC Merge Unit allows up to four Digital Snake heads to be merged into a REAC stream where the master device recognizes it as single REAC slave unit.  This important technology enables distribution of multiple input/output units around a location, venue or stage for flexible point-to-point digital snake or V-Mixing System configurations.

Roland S4000M Features:

  • Merge up to 4 REAC devices into a single REAC stream
  • Power REAC devices supporting embedded power
  • Assign channels automatically with auto map function
  • Patch input and output assignments using PC software or the M-400 / M-380V-Mixer
  • Automatically assign input channels using the Auto Map feature

Additional Features:

  • Merge up to four REAC devices together.
    The S-4000M merges up tofour Digital Snake heads, such as the S-0808, S-1608 and S-4000, and merges the input/ouput to a single REAC signal.  Ports 1 to 4 supply REAC embedded power to compatible product such a s the S-0808.  The intelligent Auto Map function assigns input channels automatically.  REAC master devices recognize the S-4000M as a single REAC slave unit even when multiple digital snake heads are connected.
  • Distribute outputs to multiple devices.
    The S-4000M also serves as a distributor of outputs and/or splitter.  Any inputs returning from Port 1 (Master) are distributed to the outputs depending on the devices connected. When S-0808 sare connected, specific output assignments can be set.
  • Configure Routing from a PC or V-Mixer.
    The M-400/M-380 V-Mixer or dedicated PC Remote Control Software (S-4000RCS) configures routing, input gain, PAD and phantom power.

Roland S4000M Specifications:

  • Connectors:
    - REAC (RJ-45 EtherCon type) x 1
    - REAC EMBEDDED POWER (RJ-45 EtherCon type) x 4
    - REMOTE (RS-232C, DB-9 type) x 1
  • Indicators:
    - REAC EMBEDDED POWER: Red x 4
    - LINK: Green x 5
    -POWER: Blue x 1
    - AUTO MAP SLAVE UNITS: Red x 1
  • Switches: POWER x 1, MODE x 1, AUTO MAP SLAVE UNITS x 1
  • Power Supply: AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60Hz)
  • Power Consumption:
    - 1.6A / AC 115 V / AC 117V
    - 0.9A / AC 220 V /AC 230 V / 240 V
    (At max output of REAC EMBEDDED POWER)
  • Dimensions: 8-5/8" W x 14-1/16" D x 3-7/16" H (218.0 x356.3 x 86.5 mm)
  • Weight: 6 lbs, 10 oz. (3.0 kg)
  • Included Accessories: Power Cord x 1, REAC Connector Cover x 5, Ferrite Core x 5, Rubber Foot x 4, Fastening Screw x 4, Owner's Manual x 1
