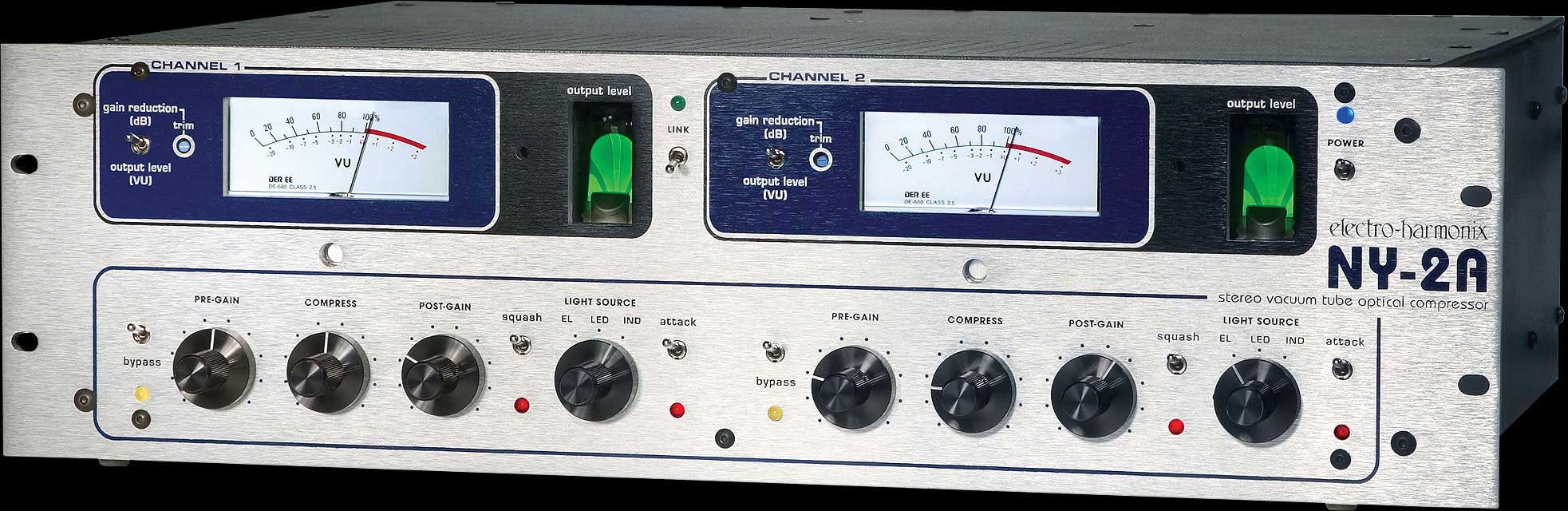

Electro-Harmonix NY-2A
Rackmount Stereo Tube Optical Compressor

OUR PART #:  NY2A

Lundahl transformer, 8 super linear, low noise gold pin vacuum tubes and military grade components are the basis for one of the finest professional compressors ever built.
Learn More
Our Price: $2,854.05
List Price: $3,805.40
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Harmonix NY-2A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Lundahl transformer, 8 super linear, low noise gold pin vacuum tubes and military grade components are the basis for one of the finest professional compressors ever built. Three opto-couplers offer three distinct modes of compression for each channel (EL, LED and Incandescent Lamp). 600 ohm defeatable, XLR In and Out with linkable operation. Features standard VU metering and rapid ballistics magic eye metering.

Electro-Harmonix NY-2A Features:

  • True bypass for each channel using mechanical relays
  • Swedish Lundahl transformers at both the input andoutput of both channels
  • Switchable electroluminescent, LED or incandescentlamps for distinct and unique compressions
  • Dual mono or stereo with the ability to assigndifferent compressions on each channel
  • Link mode to bridge channels 1 and 2
  • Each channel fully independent when Link mode set tooff
  • Input and output gain controls
  • High quality detented potentiometers to ease recallof settings
  • Switchable squash mode for additional high frequencycompression in EL mode
  • Switchable attack mode for slower attack inincandescent mode
  • Switchable 20 dB pad at the input of each channel
  • 8 professional, low-noise Electro-Harmonix vacuumtubes
  • Fast response magic eye tube meters

Electro-Harmonix NY-2A Specifications:

  • Gain Reduction: 45dB
  • THD+Noise: 20Hz .437%, 100Hz .370%, 1k .383%, 10k.388%, 25k .384%
  • Bandwidth: 15Hz-40kHz
  • Gain: Max gain 53dB
  • Signal to Noise Ratio: Greater than 65dB @ 0 dBu in/0dBu out, greater than 80dB @ 10dBu in/+20dBu out
  • Attack Time: Depending on light source andde-emphasis, 10mS, 30mS, 50mS and 100mS
  • Decay Time: Dependent on light source
  • Input Impedance: 10k ohms balanced
  • Output Impedance: 600 ohms balanced
  • Dimensions (W x H x D): 19" x 5.25" x 14.25"
  • Weight: 25.7 lbs
  • Panel Controls:
    • Pre Gain
    • Compress
    • Post Gain
    • Light Source Select (x2)
    • Link
    • Attack
    • Squash
    • Bypass
    • Gain Reduction
    • Meter Calibration
    • Trim (x2)
    • Power
  • Metering:
    • Output Level (dBu)
    • Gain Reduction/Magic Eye rapid ballistic EM-80 tubes
  • Tubes:
    • EH-1 (x2)
    • EH-2 (x2)
    • EH-3 (x2)
    • EM80 (magic eye) metering tubes
