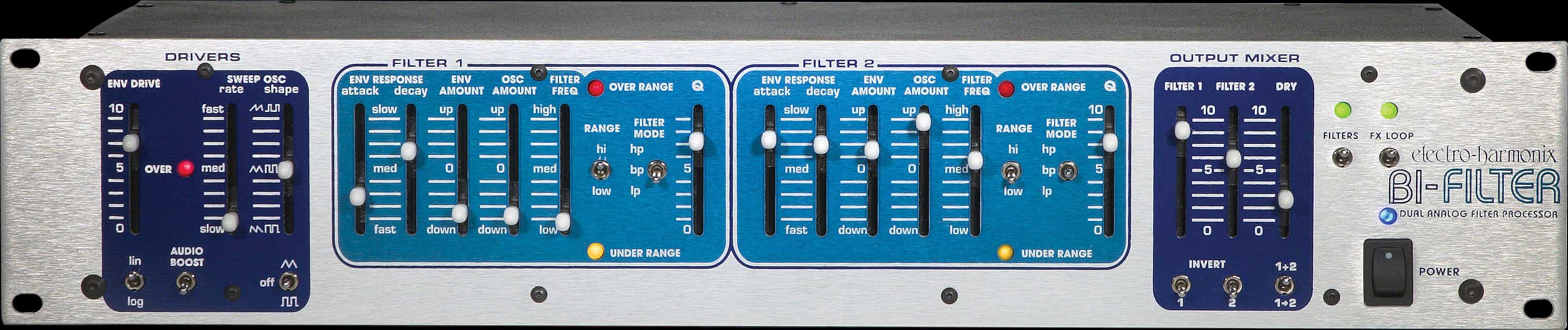

Electro-Harmonix BI-FILTER
Rackmount Dual Analog Filter Processor, PSU Included

OUR PART #:  BI-FILTER

Multi-mode filters and an all-analog signal path pumps up your sound with the world's fattest, sweetest filter power.
Learn More
Our Price: $471.30
List Price: $628.35
You save 25%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Harmonix BI-FILTER
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Multi-mode filters and an all-analog signal path pumps up your sound with the world's fattest, sweetest filter power. Two separate filter sections can be used in serial or parallel with different tonal sweeps, which react individually or interactively. Phase control allows for further contouring. Individual outputs for each filter plus a mixed output. In addition an external CV in or Expression Pedal in for controlling the filters with external devices, footswitch pedal input and two CV outputs enable audio triggering from each filter.

Features

  • True bypass using a mechanical relay
  • All analog processing
  • Dual 2-pole resonant filters
  • Each filter completely independent from the other
  • Switchable filter type for each filter: lowpass, bandpass or highpass
  • Accurate envelope follower section using a precision full-wave rectifier circuit with optional log control
  • Dual attack and decay adjustability for the envelopes each filter
  • LFO with switchable triangle or square wave shape
  • LFO duty cycle adjustable from 0 to 100% or from up sawtooth to down sawtooth
  • Switchable FX Loop section allows user to apply effects to the signal before the filters while retaining the instrument's original dynamics
  • FX Loop section also allows the envelope of one instrument to sweep the filters acting on another instrument
  • Independent outputs of each filter
  • Mixer section allows user to mix the filter outputs with the dry signal as well as invert each filter
  • CV/expression pedal inputs for each filter, controlling the center frequency of the respective filter
  • CV outs output each filter's envelope section
  • 18VAC-1000 power supply included
