Furman M-8X2
15A 8 Outlet Power Conditioner

OUR PART #  M-8X2

Our Price: $79.00
List Price: $99.95
You save 21%! (Low Price Guarantee)
In Stock

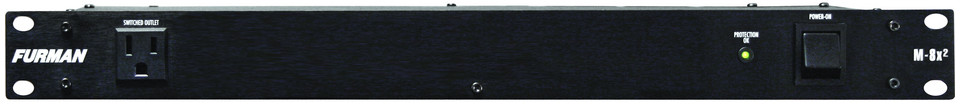

The Furman M-8X2 Merit Series Power Conditioner is a great low-cost AC power solution for any rack mount system. Install an M-8x2 in to the top slot of your rack, and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load. The M-8x2 is designed for applications where lights are not required.

Furman M-8X2 Specifications:

  • Maximum Output Current: 15 amps
  • Line Cord: 6 ft., captive, 14 AWG, with 3-conductor Edison plug
  • Operating Voltage: 120VAC 60Hz
  • Spike Protection Mode: Line to neutral
  • Energy Dissipation: 170 joules
  • Peak Impulse Current: 12,000 amps
  • Maximum Continuous Opterating Voltage: 130 VAC RMS
  • Let Through Voltage (@ 125 amps, 8/20uS waveform) 400 volts
  • Noise Attenuation: Transverse mode: Greater than 23dB, 200Khz to 10 Mhz
  • Dimensions (HxWxD): 1.75" x 19" x 3.75"
  • Weight: 4.9 lbs.
  • Safety Agency Listing: cTUVus
  • Warranty: Merit Series units are protected by a limited three-year warranty covering defects in materials and workmanship.

Furman M-8X2
15A 8 Outlet Power Conditioner

OUR PART #  M-8X2

Product Information:

The Furman M-8X2 Merit Series Power Conditioner is a great low-cost AC power solution for any rack mount system. Install an M-8x2 in to the top slot of your rack, and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load. The M-8x2 is designed for applications where lights are not required.

Furman M-8X2 Specifications:

  • Maximum Output Current: 15 amps
  • Line Cord: 6 ft., captive, 14 AWG, with 3-conductor Edison plug
  • Operating Voltage: 120VAC 60Hz
  • Spike Protection Mode: Line to neutral
  • Energy Dissipation: 170 joules
  • Peak Impulse Current: 12,000 amps
  • Maximum Continuous Opterating Voltage: 130 VAC RMS
  • Let Through Voltage (@ 125 amps, 8/20uS waveform) 400 volts
  • Noise Attenuation: Transverse mode: Greater than 23dB, 200Khz to 10 Mhz
  • Dimensions (HxWxD): 1.75" x 19" x 3.75"
  • Weight: 4.9 lbs.
  • Safety Agency Listing: cTUVus
  • Warranty: Merit Series units are protected by a limited three-year warranty covering defects in materials and workmanship.
