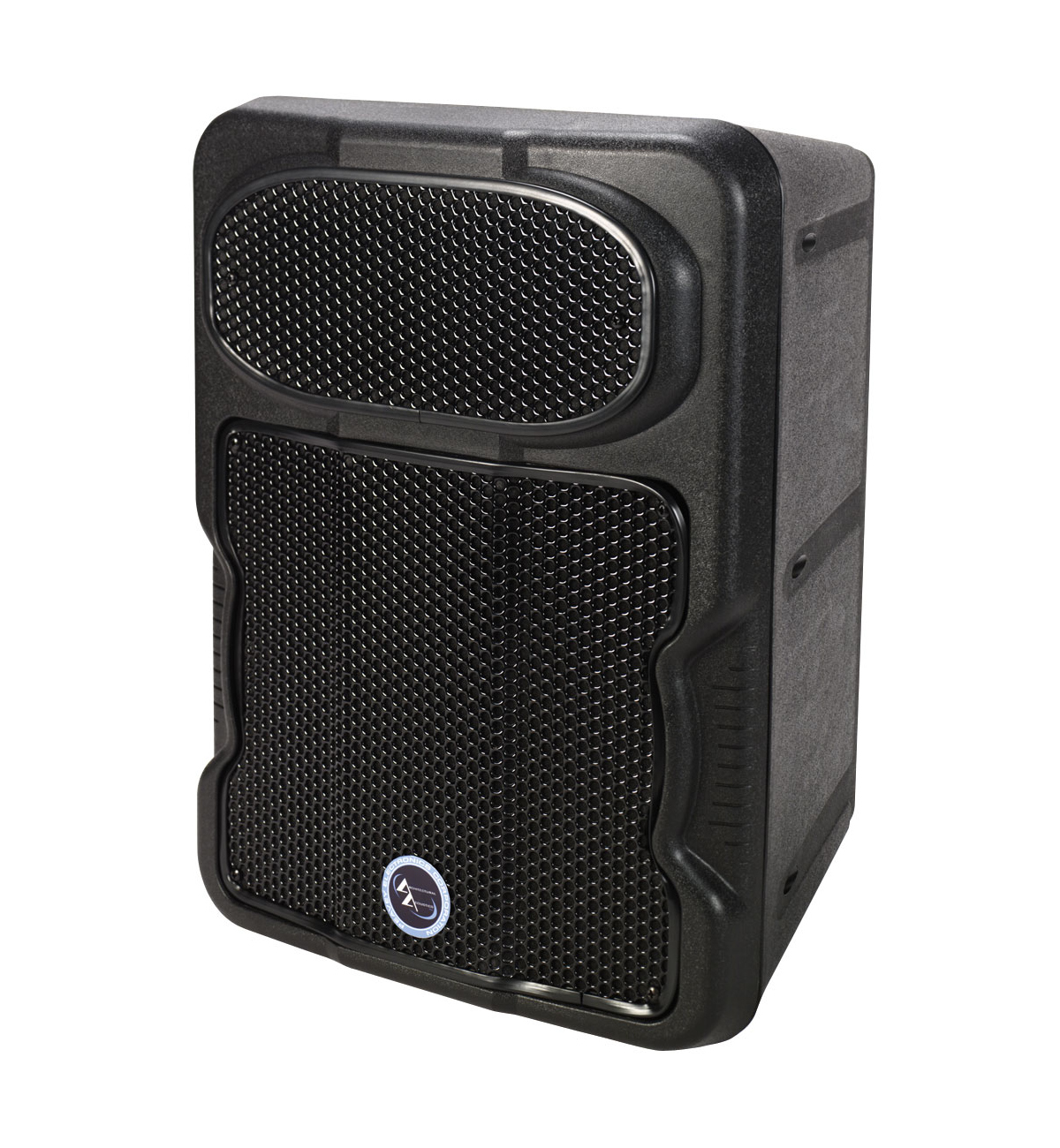

Peavey Quadra 10 Black
10" 2-Way Speaker, Black

OUR PART #:  QUADRA10-BLACK

An injection-molded, 2-way speaker system, Peavey's Quadra® 10 Black is engineered in the AA tradition to deliver superior performance from a compact...
Learn More
Our Price: $332.01
List Price: $470.31
You save 29%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Peavey Quadra 10 Black
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

An injection-molded, 2-way speaker system, Peavey's Quadra® 10 Black is engineered in the AA tradition to deliver superior performance from a compact, durable package. The enclosure is made from very high impact, injection-molded polypropylene in a trapezoidal shape, includes extensive ribbing and bracing, and the grilles utilize perforated metal that's protected by a high-quality vinyl coating process, plus an integral foam inner layer for environmental protection.

The 2-way system is made up of a 10" long-throw heavy-duty woofer, featuring a water-resistant treated cone and dust cap for exceptional environmental stability.  The high frequencies are handled by a 14XT™ 1.4" titanium diaphragm compression driver coupled to a 1" Quadratic Throat Geometry horn that's molded integral to the cabinet. This horn provides remarkable dispersion which is coupled with a well-controlled pattern, and smooth, even response.

Utilizing Quadratic Throat Horn™ technology (US patent 6,059,069), the horn offers lower distortion than many other popular CD horn geometries.

The input connection to the system is made via screw terminal strips (one pair) giving full-range inputs.

It comes equipped with an internal passive crossover that features a Sound Guard™ II tweeter protection circuit, as well as an advanced topology crossover with high performance components to provide high power-handling and dependability. This proprietary high-frequency driver protection circuitry provides medium- and long-term driver overload protection without impairing musical dynamics or transients. The crossover provides driver roll-off and protection, along with driver EQ for the woofer and horn; the result is a crystal-clear, very smooth response. High-quality, reliable crossover components include polypropylene capacitors, high-current inductors, and input connectors. The optimal integration of the crossover with the selected drivers delivers a smooth frequency response from 74 Hz to 18 kHz.

Despite its compact size, this enclosure can put out some very serious sound levels, and can take 500 Watts program of clean amplifier power, offering an outstanding amount of clean coverage with amazing clarity.

Beamwidth is derived from the -6 dB points from the polar plots that are measured in a whole space anechoic environment. Q and Directivity Index is plotted for the on-axis measurement position. These are specifications that provide a reference to the unit's coverage characteristics. These parameters give insight for proper placement and installation in the chosen environment. The blending of the Quadra 10's components exhibit a desirable beamwidth and directivity suitable for sound reinforcement applications.

There are many different approaches to power handling ratings. Peavey rates this loudspeaker system's power-handling using a full-range form of the AES Standard 2- 1984. Using audio band 20 Hz to 20 kHz pink noise with peaks of 4x the RMS level, this strenuous test signal assures the user that every portion of this system can stand up to today's high-tech music. This rating is contingent upon having a minimum of 3 dB of amplifier headroom available.

Peavey Quadra 10 Features:

  • Quadratic throat geometry horn
  • 500 Watts program, 1000 Watts peak
  • Sound Guard™ tweeter protection
  • 10" heavy-duty woofer
  • 14XT™ 1.4" titanium compression driver
  • Top handle and bottom stand mount
  • Top, rear and bottom flying point inserts
  • Screw terminal connections

Peavey Quadra 10 Specifications:

  • Enclosure color: Black
  • Frequency response, 1 meter on-axis, swept-sine in anechoic environment: 74 Hz – 18 kHz (±3 dB)
  • Usable low frequency limit (-10 dB point): 57 Hz
  • Power handling:
    - Full Range: 250 W continuous, 500 W program, 1,000 W peak
  • Sound pressure level, 1 Watt, 1 meter in anechoic environment: Full Range: 96.0 dB SPL, (2.83 V input)
  • Maximum sound pressure level (1 meter):
    • Full Range:
      • 120.0 dB SPL Continuous
      • 126.0 dB SPL peak
  • Radiation angle measured at -6 dB point of polar response:
    • 500 Hz —1.6 kHz: Horizontal: 120° ±25°, Vertical: 115° ±20°
    • 1.6 kHz — 5 kHz:Horizontal: 90° ±5°, Vertical: 70° ±10°
    • 5 kHz — 16 kHz: Horizontal: 80° ±10°, Vertical: 45° ±10°
  • Directivity factor, Q (Mean): 8.88 ±4.65
  • Directivity index, Di (Mean): 8.89 dB ±2.04 dB
  • Transducer complement:
    • Low frequency section: 1x 10" woofer, vented 10" long-throw heavy-duty woofer
    • High frequency section: 1x 1" exit/34 mm voice coil compression driver 14XT™ on a CD horn
  • Box tuning frequency: Low frequency section: 75 Hz
  • Harmonic distortion:
    • 1% rated power:
      • 2nd Harmonic: 100 Hz: 0.94%,1 kHz: 0.23%
      • 3rd Harmonic: 100 Hz: 2.50%, 1 kHz: 0.95%
    • 10% rated power:
      • 2nd Harmonic: 100 Hz: 2.36%, 1 kHz: 1.36%
      • 3rd Harmonic: 100 Hz: 1.06%, 1 kHz: 2.18%
  • Crossover frequency (internal passive): Low Frequency — Mid Frequency: 2.2 kHz
  • Time offset:
    • Low Frequency: 0.00 ms
    • High Frequency: Horn spatially aligned ms
  • Impedance (Z):
    • Full Range:
      • Nominal: 8.0 ohms
      • Minimum: 6.7 ohms
  • Input connections: Screw terminal strip (one pair) for full-range inputs
  • Enclosure materials and finish: 1/4" high impact polypropylene finished in black textured molded surface
  • Mounting provisions: (12) 1/4"-20 threaded mounting points, four each top, rear and bottom. Stand mounting via molded-in mount of the standard 1-3/8" diameter and four rubber feet for floor use.
  • Front Dimensions (H x W x D):  18.75" x 14.00" x 13.19" (486 x 356 x 335 mm)
  • Rear Dimensions (H x W x D): 16.69" x 8.00" x 13.9" (424 x 203 x 335 mm)
  • Net weight: 31 lbs. (14.1 kg)
