Grace Design M906L
AES Loop Option for M906, Factory Installed Only

OUR PART #:  M906L

NOTE : This item will be factory installed when ordered with the M906.  Both items must be ordered at the same time.
Learn More
Our Price: $395.00
Write the first review.
Grace Design M906L
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

NOTE: This item will be factory installed when ordered with the M906.  Both items must be ordered at the same time.

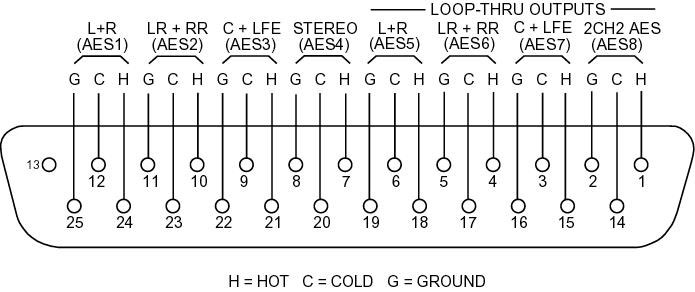

The m906 AES Loop-Thru option provides the user with four AES digital outputs via the rear panel multi-channel AES DB-25 connector. Each of the outputs is completely isolated and is designed to drive a 110-ohm termination. These are wired according to the TASCAM pinout as shown in the above diagram.

The digital loop-thru outputs are derived as follows:

  • L+R (AES5): This output provides the LEFT and RIGHT channels of the selected digital input.
  • LR+RR (AES6): This output provides the LEFT REAR and RIGHT REAR channels of the 5.1 AES input when this input is selected.
  • C+LFE (AES7): This output provides the CENTER and LOW FREQ channels of the 5.1 AES input when this input is selected.
  • 2CH2 (AES8): This output provides the signal present on the 2CH2 AES input regardless of input selection.
  • NOTE: The digital loop-thru outputs do not function for ADAT sources.
