Audio Technica 600 MHz Wireless System Trade-In Rebate

When You Purchase One Of The Wireless Systems Below And Trade In Your Current 600 MHz System, You Will Receive Up To $450 From Audio Technica After Mail-In Rebate

... read more

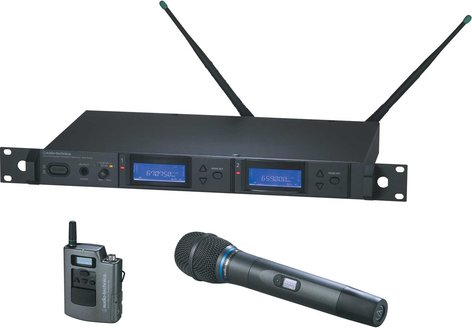

Audio-Technica AEW-5313AC
Dual Wireless Microphone System with Bodypack Transmitter & AEW-T3300a Cardioid Condenser Mic/Transmitter, UHF Band C: 541.500 MHz to 566.375 MHz

OUR PART #:  AEW-5313AC

Includes: AEW-R5200 Dual Receiver AEW-T1000a UniPak Transmitter AEW-T3300a Cardioid Condenser Microphone/Transmitter Designed for use on professional tours...
Learn More
Our Price: $3,279.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio-Technica AEW-5313AC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Includes:

  • AEW-R5200 Dual Receiver
  • AEW-T1000a UniPak Transmitter
  • AEW-T3300a Cardioid Condenser Microphone/Transmitter

Designed for use on professional tours, in stadiums, concert halls, houses of worship and other demanding audio environments, Audio-Technica’s dual-receiver Artist Elite® 5000 Series provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.

The newly upgraded 5000 Series sets standards for wireless live sound, with its dual-compander circuitry that processes high and low frequencies separately. It also features A-T’s proprietary IntelliScan™ capability, 996-channel frequency agility, True Diversity operation, soft-touch controls, digital Tone Lock™ squelch, backlit LCD displays on all transmitters, and locking battery doors on the UniPak® body-pack transmitters.

With two independent True Diversity receivers in a single full-rack housing, the 5000 Series conserves rack space while providing outstandingly reliable and flexible performance. Receivers may be linked to form a complete system in which the built-in IntelliScan capability automatically determines and sets the best available frequencies on all linked receivers. Equipped with Ethernet ports, the 5000 Series receiver allows computer management and control from anywhere via new wireless control software; access computer control from a front-of-the-house rack in the same room, or clear across the country, making it truly a 21st century product.

Multiple system configurations are available, with handheld vocal microphone/transmitters and UniPak® body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars.

Features

  • Two independent receivers in a single housing
  • 996 selectable UHF channels per band and True Diversity reception for interference-resistant operation
  • Available in two frequency bands:
    541.500 - 566.375 MHz (TV Channels 25 - 30) and
    655.500 - 680.375 MHz (TV Channels 44 - 49)
  • IntelliScan™ feature automatically finds and sets best available frequencies on all linked receivers
  • On-board Ethernet interface for monitoring and controlling system parameters with included AEW Control Interface software
  • Advanced digital Tone Lock™ squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
  • Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality
  • 1/4" external mute switch jack allows user to mute the system quickly and easily
  • AC pass-through allows daisy-chain AC hookup with included IEC jumper cables
  • Link and coordinate multiple receiver channels
  • High-visibility white-on-blue LCD information display
  • Metal full-rack receiver chassis with reinforced mounting ears and rear rack mount capability
  • All transmitters offer rugged, ergonomic metal bodies, programmable features, soft-touch controls, and 10 mW/35 mW switchable RF power
  • Backlit LCD displays on transmitters
  • Locking battery door on UniPak body-pack transmitter
  • All components store up to five preset configurations, with customized "names" if desired

Overall System Specifications

  • Operating Frequencies: UHF Band C: 541.500 MHz to 566.375 MHz (996 frequencies)
  • Frequency Stability: +/-0.005%, Phase Lock Loop frequency control
  • Minimum Frequency Step: 25kHz
  • Modulation Mode: FM
  • Normal Deviation: +/-5kHz
  • Operating Range: 300' typical
  • Operating Temperature Range: 41° F to 113° F
  • Frequency Response: 70Hz to 15kHz

Receiver Specifications

  • Receiving System: Dual independent RF sections, automatic-switching diversity
  • Image Rejection: 60dB typical
  • Signal-to-Noise Ratio: 115dB at 40kHz deviation (IEC-weighted), 75kHz maximum modulation
  • Total Harmonic Distortion: <=1% (10kHz deviation at 1kHz)
  • Sensitivity: 20 dBµV (S/N 70 dB at 5kHz deviation, IEC-weighted)
  • Intermediate Frequency: 65.75 MHz, 10.7 MHz
  • Audio Output - Microphone: 25 mV (at 1kHz, +/-5kHz deviation, 10k ohm load), transformer isolated and balanced (ATTN switch at "0")
  • Audio Output - Instrument: 50 mV (at 1kHz, +/-5kHz deviation, 10k ohm load), transformer isolated and balanced (ATTN switch at "0")
  • Audio Output Attenuator (ATTN): Three-position switch: 0/-6/-12 dB
  • Output Connectors (Microphone): XLRM-type, balanced
  • Output Connectors (Instrument): 1/4" TRS balanced
  • Headphone Output:
    Connector: 1/4" TRS ("stereo")
    Power Output: 10 mW + 10mW into 32 ohms (at 1kHz, +/-5kHz deviation); maximum output: 220 mW + 220 mW into 32 ohms
    Headphones switchable between Channel 1 and Channel 2
  • External Mute: 1/4" TS unbalanced, each channel
  • Antenna Power: DC 10V-12V, 20 mA (BNC-type jack)
  • Computer Interface:
    Type: Ethernet, 10BaseT mode
    Connector: RJ-45
    Proprietary Software: supplied on CD-ROM
  • Power Supply: 100-240v AC 50/60Hz, 15W
  • Pass-through AC Power Outlet: 100-240V AC 50/60Hz, 5A maximum
  • Dimensions (W x H x D): 18.98" x 1.74" x 10.85"
  • Weight: 8.8 lbs (without accessories)
  • Accessories Included: Detachable IEC-type AC power cable; two flexible UHF half-wave antennas; link cable; IEC-type AC pass-through cable; front-mount antenna cables and connectors; CD-ROM with computer control interface software

Body-Pack Transmitter Specifications

  • RF Power Output: High: 35 mW; Low: 10 mW, nominal
  • Spurious Emissions: Under federal regulations
  • Microphone Dynamic Range: >=110 dB, A-weighted
  • Instrument Dynamic Range: >=100 dB, A-weighted
  • Input Connections: High impedance, low impedance, bias
  • Batteries: Two 1.5V AA alkaline (not included)
  • Current Consumption: High: 185 mA; Low: 165 mA, typical
  • Battery Life: Approximately 8 hours (High); 10 hours (Low), depending on battery type and use pattern
  • Dimensions (W x H x D): 2.6" x 3.43" x 0.94"
  • Net Weight: 4.4 oz (without batteries)

Handheld Transmitter Specifications

  • RF Power Output: High: 35 mW; Low: 10 mW, nominal
  • Spurious Emissions: Under federal regulations
  • Dynamic Range: >=110 dB, A-weighted
  • Microphone Element: AEW-T3300a Cardioid Condenser
  • Input Connections: High impedance, low impedance, bias
  • Batteries: Two 1.5V AA alkaline (not included)
  • Current Consumption: High: 185 mA; Low: 165 mA, typical
  • Battery Life: Approximately 6 hours (High); 8 hours (Low), depending on battery type and use pattern
  • Dimensions: 9.41" long, 1.97 diameter
  • Net Weight: 9.5 oz (without batteries)
  • Accessory Included: AT8456a Quiet-Flex stand clamp
